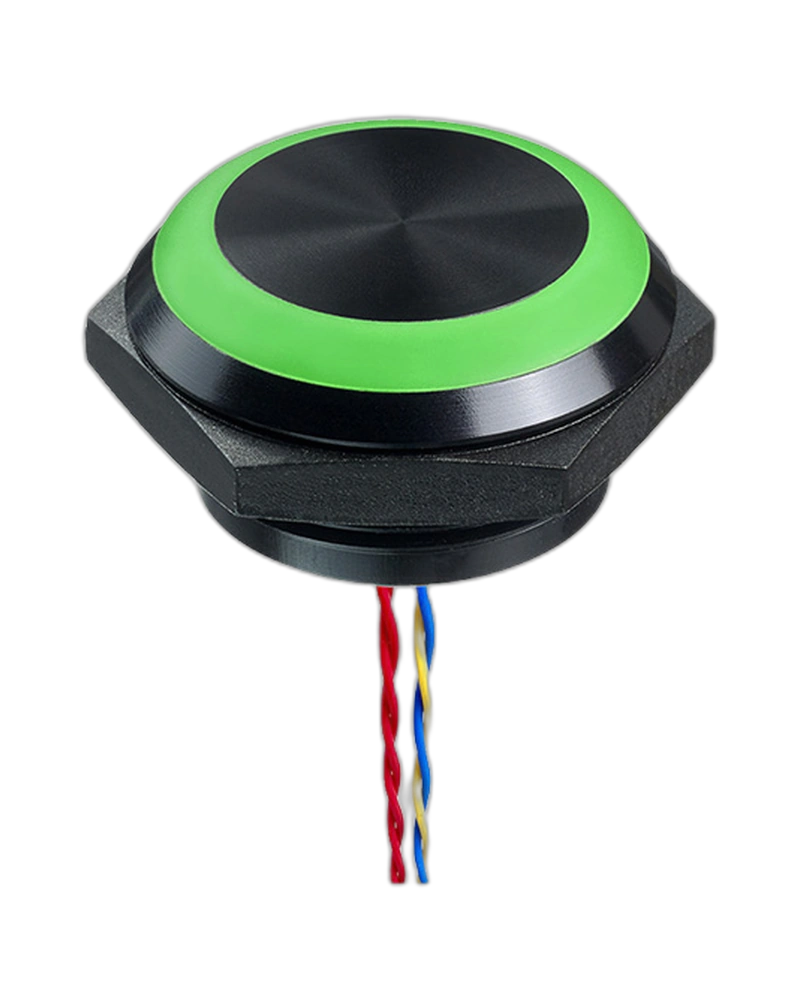

Panel Switches PBAM5AFB002E0G

PBAM5AFB002E0G Bewertungen : 1 A 24 VAC/DC LED-Farbe : Grün Terminals : Fliegende Leads PBA 30 mm PBAM5AFB002E0G Bewertungen : 1 A 24 VAC/DC LED-Farbe : Grün Terminals : Fliegende Leads PBA 30 mm PBAM5AFB002D0S Bewertungen : 1 A 24 VAC/DC LED-Farbe : Rot Terminals : Fliegende Leads PBAM5AFB002D0S LED-Farbe : Rot PBA 30 mm PBAM5AF2002E0G Bewertungen : 1 A 24 VAC/DC LED-Farbe : Grün Terminals : Fliegende Leads PBAM5AF2002E0G PBA 30 mm PBAM5AF0002E0S Bewertungen : 1 A 24 VAC/DC LED-Farbe : Rot Terminals : Fliegende Leads PBAM5AF0002E0S PBA 30 mm PBAM5AC2002D0W Bewertungen : 1 A 24 VAC/DC LED-Farbe : Weiß Terminals : Kabel PBAM5AC2002D0W LED-Farbe : Weiß Terminals : Kabel PBA 30 mm PBAM4AFB002E2A Bewertungen : 1 A 24 VAC/DC LED-Farbe : Rot Grün Terminals : Fliegende Leads PBAM4AFB002E2A LED-Farbe : Rot Grün PBA 30 mm PBAM4AFB002E0Y Bewertungen : 1 A 24 VAC/DC LED-Farbe : Gelb Terminals : Fliegende Leads PBAM4AFB002E0Y LED-Farbe : Gelb PBA 30 mm PBAM4AFB002E0G Bewertungen : 1 A 24 VAC/DC LED-Farbe : Grün Terminals : Fliegende Leads PBAM4AFB002E0G PBA 30 mm PBAM4AFB002E0B Bewertungen : 1 A 24 VAC/DC LED-Farbe : Blau Terminals : Fliegende Leads PBAM4AFB002E0B LED-Farbe : Blau PBA 30 mm PBAM4AF0002D0S Bewertungen : 1 A 24 VAC/DC LED-Farbe : Rot Terminals : Fliegende Leads PBAM4AF0002D0S PBA 30 mm PBAM4AF0002D0G Bewertungen : 1 A 24 VAC/DC LED-Farbe : Grün Terminals : Fliegende Leads PBAM4AF0002D0G PBA 30 mm PBAM4AF0002D0B Bewertungen : 1 A 24 VAC/DC LED-Farbe : Blau Terminals : Fliegende Leads PBAM4AF0002D0B PBA 30 mm PBAM4ACB002D2A Bewertungen : 1 A 24 VAC/DC LED-Farbe : Rot Grün Terminals : Kabel PBAM4ACB002D2A PBA 30 mm PBAM3AFB002E0B Bewertungen : 1 A 24 VAC/DC LED-Farbe : Blau Terminals : Fliegende Leads PBAM3AFB002E0B PBA 30 mm PBAM3AFB002D0S Bewertungen : 1 A 24 VAC/DC LED-Farbe : Rot Terminals : Fliegende Leads PBAM3AFB002D0S PBA 30 mm PBAM3AF0002D0B Bewertungen : 1 A 24 VAC/DC LED-Farbe : Blau Terminals : Fliegende Leads PBAM3AF0002D0B PBA 30 mm PBAM1AFB002 Bewertungen : 1 A 24 VAC/DC Terminals : Fliegende Leads LED-Spannung : Unbeleuchtet PBAM1AFB002 LED-Spannung : Unbeleuchtet PBA 30 mm PBAM1AF6002 Bewertungen : 1 A 24 VAC/DC Terminals : Fliegende Leads LED-S

Key Features

• Life expectancy: 50 million cycles LED consumption : 20 mA Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min.
• Sealing: IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel)
• Operating force: 6 to 12 N
• Torque: 1.5 Nm min. - 10 Nm max Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination: flus
• LED Color: Green,LED Voltage:24VDC
• Bushing Operator: Operator Height: 5.5mm (0.216in) Illuminated Prominent Colored Ring (Same Colour as LED)
• Colors Materials: Stainless Steel 316L,LED Colour:Green,LED Voltage:24VDC
• Ratings: 1A 24V AC/DC
• Operating temperature: -40 °C to +75 °C (-40 °F to +167 °F)
• Max. current/voltage rating with resistive load: 1 A 24 VAC/DC Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min.
• Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_PBA30 16/08/2024
• Terminals: Flying Leads
• Electrical Functions: No Pulse

Technical Specifications
