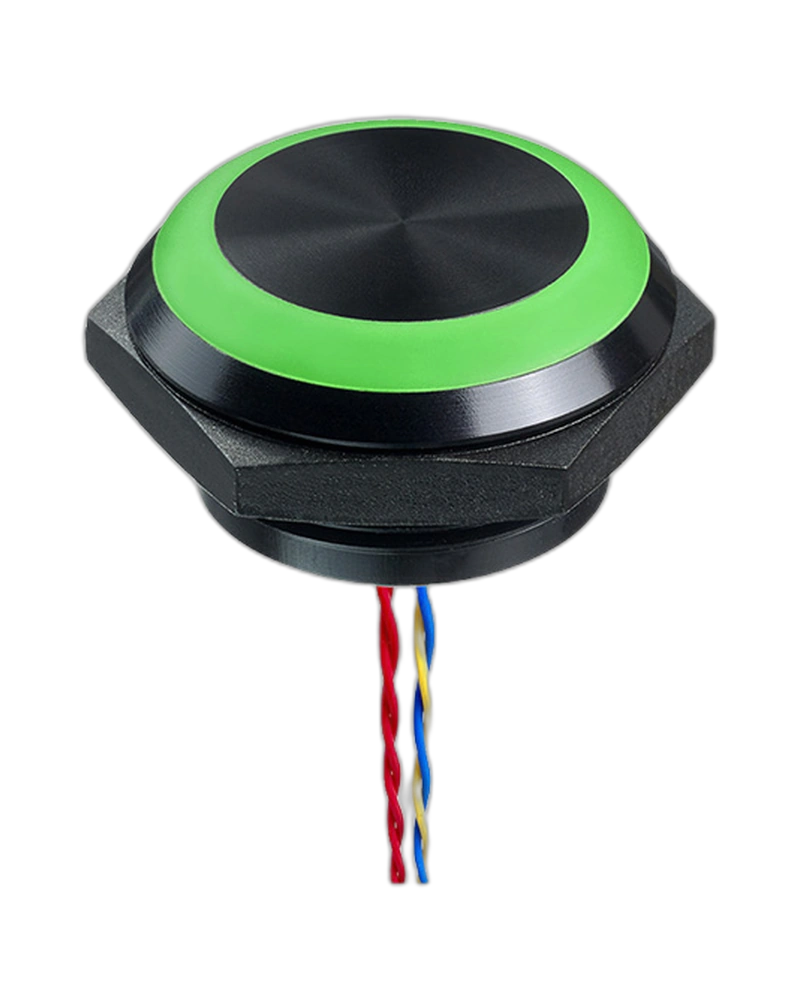

The APEM Panel Switches PBAM1AF1002 is a Switches and Pushbutton with documented product-specific characteristics including Life expectancy: 50 million cycles LED consumption : 20 mA Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min.; Sealing: IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel); Operating force: 6 to 12 N.
The Panel Switches PBAM1AF1002 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Life expectancy | 50 million cycles LED consumption : 20 mA Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min. |
| Sealing | IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel) |
| Operating force | 6 to 12 N |
| Torque | 1.5 Nm min. - 10 Nm max Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination: flus |
| Bushing Operator | Operator Height 2.5mm(0.98in) Non-Illuminated |
| Ratings | 1A 24V AC/DC |
| Operating temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Max. current/voltage rating with resistive load | 1 A 24 VAC/DC Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min. |
| Colors Materials | Blue Anodised,LED Voltage:Non-Illuminated |
| Electrical Functions | No Pulse |
| Feature | Specification |
|---|---|
| Height | 2.5mm |
The APEMPanel Switches PBAM1AF1002 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Life expectancy | 50 million cycles LED consumption : 20 mA Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min. |
| Sealing | IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel) |
| Operating force | 6 to 12 N |
| Torque | 1.5 Nm min. - 10 Nm max Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination: flus |
| Bushing Operator | Operator Height 2.5mm(0.98in) Non-Illuminated |
| Ratings | 1A 24V AC/DC |
| Operating temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Max. current/voltage rating with resistive load | 1 A 24 VAC/DC Switch resistance ON : 10 Ω max. Switch resistance OFF : 5 MΩ min. |
| Colors Materials | Blue Anodised,LED Voltage:Non-Illuminated |
| Electrical Functions | No Pulse |
| Feature | Specification |
|---|---|
| Height | 2.5mm |
