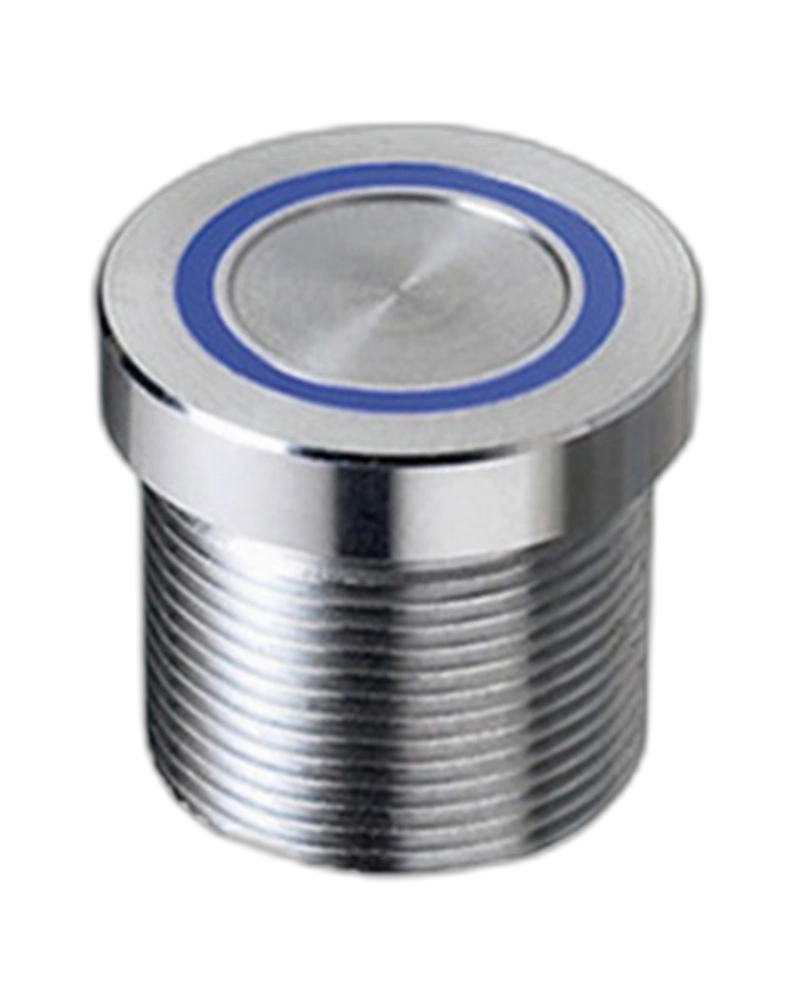

PBA ATEX These switches are part of the PBA series including models with dia. 16, 19 or 22 mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations. This series is approved according to the ATEX 2014/34/EU directive.
| Feature | Specification |
|---|---|
| LED | 5 VDC, 10 mA to 20 mA depending on model |
| Type | Illuminated Dot 22 mm |
| Rated voltage | 5 V |
| Rated current | 200 mA |
| Feature | Specification |
|---|---|
| Ratings | 200 mA Max at 6 VAC/DC, 50 mA Max at 24 VAC/DC |
| Terminals | Flying Leads,Type:Illuminated Dot 22 mm |
| Sealing | IP66 per IEC 60529 (switches mounted on panel) |
| Operating force | 2 to 6 N |
| Torque | 2.5 Nm max. |
| Colors Materials | 316L Stainless Steel,LED Colour:Green,Model:Bushing 22mm(0.866in) Flat |
| Operating temperature | -40 °C to +55 °C |
| LED Color | Green,Model:Bushing 19mm(0.748in) Flat |
| Electrical Functions | No Pulse |
| Feature | Specification |
|---|---|
| LED | 5 VDC, 10 mA to 20 mA depending on model |
| Type | Illuminated Dot 22 mm |
| Rated voltage | 5 V |
| Rated current | 200 mA |
