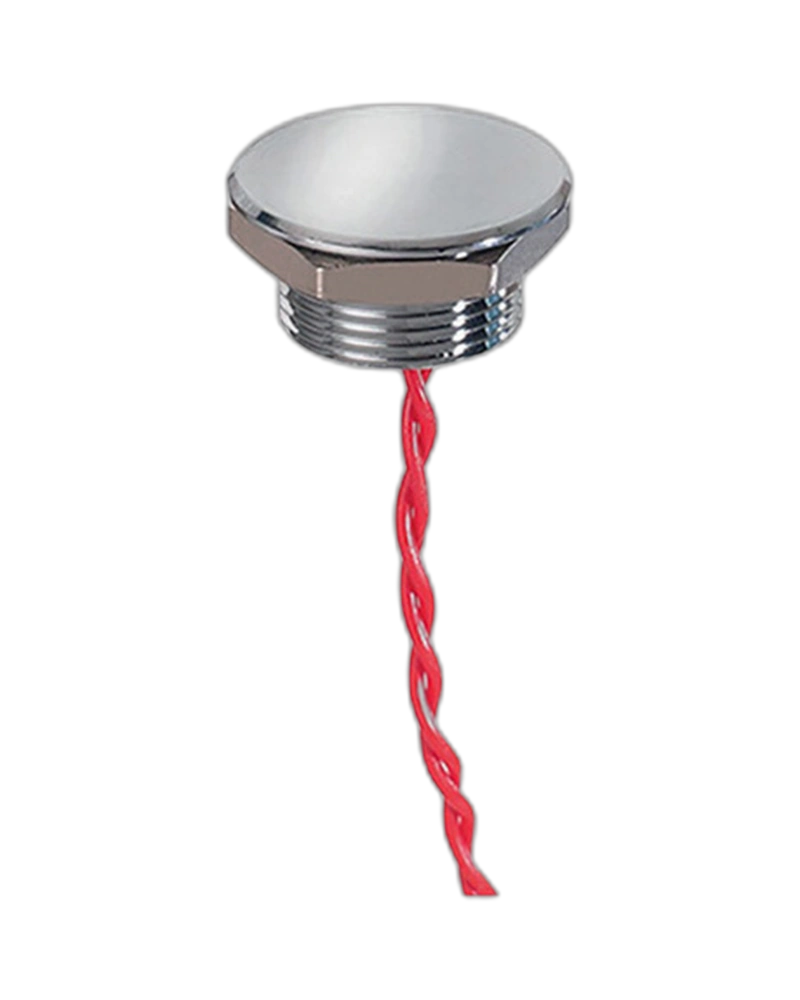

PBA 16 mm These switches are part of the PBA series including models with dia. 16, 19 or 22 mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring illumination, custom configurations.
| Feature | Specification |
|---|---|
| Ratings | 1A 24V AC/DC No Pulse, Only Function A |
| Power consumption for function 1 | non-illum.10 mA - illuminated 30 mA |
| Height | 45 mm |
| Operating temperature | -40 °C |
| Feature | Specification |
|---|---|
| Bushing Operator | Flat Operator Height: 45 mm (1.77in) |
| Sealing | IP68 per IEC 529, IP69K per DIN 40050-9 (switches mounted on panel) Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Life expectancy | 50 million cycles Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination Sealed to I |
| Colors Materials | Stainless Steel 316L,LED Colour:Red |
| Type Of Illumination Voltage | Standard Ring 12VDC |
| Operating force | 2 to 6N |
| voltage rating | - Function A : standard 200 mA 24 VAC/DC - option 1 A 24 VAC/DC- Function B : standard 100 mA 24 VAC/DC Switch resistance ON : 10Ω max |
| Electrical Functions | No Pulse |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Ratings | 1A 24V AC/DC No Pulse, Only Function A |
| Power consumption for function 1 | non-illum.10 mA - illuminated 30 mA |
| Height | 45 mm |
| Operating temperature | -40 °C |
