Explore performance details, construction highlights, applications, and technical information in one clear overview.

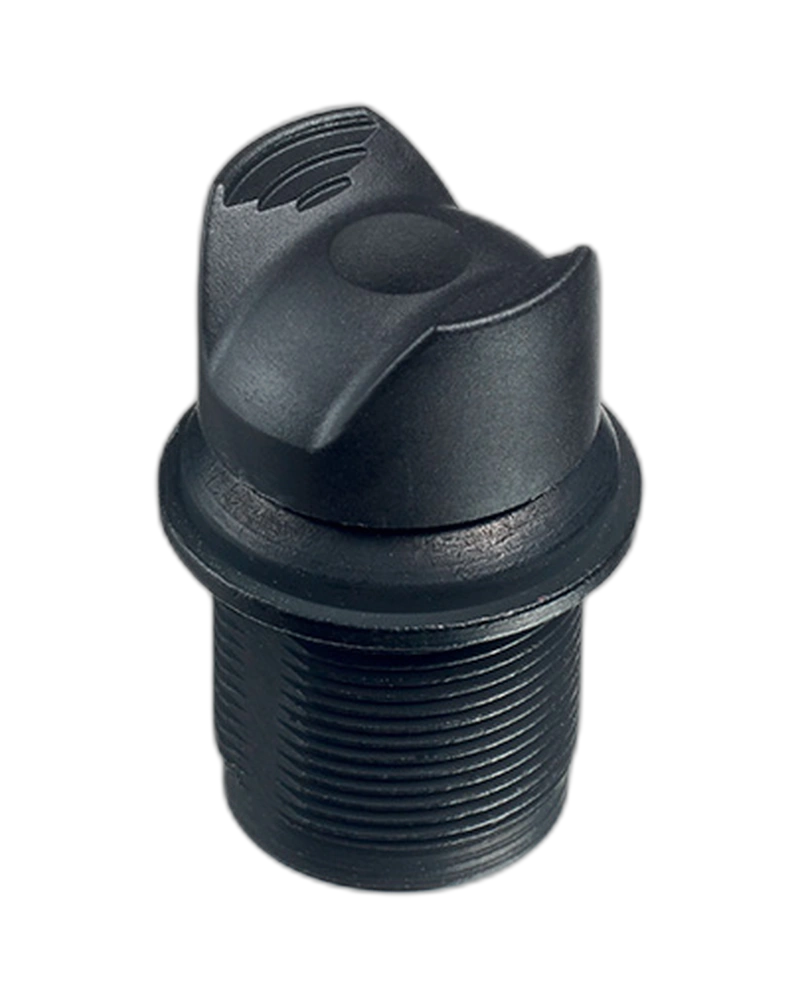

The APEM Panel Switches MTG72CD2 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles Minimal load:- A contacts: 50 mA 10 VDC- AD and CD contacts; Panel thickness: 11.5 mm (.452) max. Environmentally sealed (IP68) Multiple single functions available Various contact materials that allow usage from dry circuitapplications up to 4 A Multiple single functions available Various contact.
MTG72CD2 Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles Minimal load:- A contacts: 50 mA 10 VDC- AD and CD contacts |
| Panel thickness | 11.5 mm (.452) max. Environmentally sealed (IP68) Multiple single functions available Various contact materials that allow usage from dry circuitapplications up to 4 A Multiple single functions available Various contact |
| Operating temperature | -40 °C to +85 °C Low level or mechanical life : 100,000 cycles |
| Electrical Functions | MOM OFF MOM |
