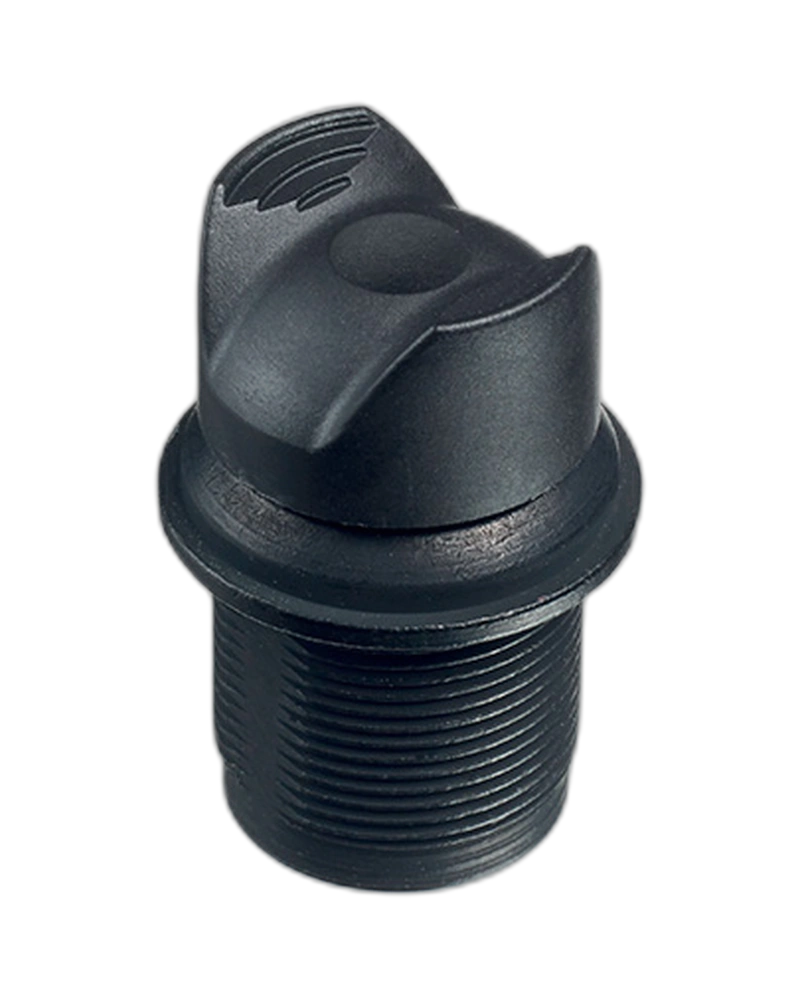

The APEM Panel Switches MTG72AD4 is a robust, environmentally sealed (IP68) autoswitch designed for dry circuit applications up to 4 A. Featuring MOM OFF MOM control, solder lug mounting, and multiple single functions, it delivers reliable performance with an insulation resistance of 1,000 MΩ min. at 500 VDC, dielectric strength of 1,000 Vrms 50 Hz min. between terminals, and electrical life of 50,000 cycles at full load. Ideal for industrial environments operating from -40 °C to +85 °C.
The APEM MTG72AD4 Panel Switch is a high-reliability autoswitch engineered for demanding industrial applications. This environmentally sealed (IP68) switch provides MOM OFF MOM control functionality with solder lug mounting for straightforward installation. Designed to operate in extreme temperature ranges from -40 °C to +85 °C, it supports dry circuit applications up to 4 A with multiple single functions. The switch ensures robust performance through its high insulation resistance (1,000 MΩ min. at 500 VDC), dielectric strength (1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50 Hz min. between terminals and frame), and contact bounce of 2 ms max. The MTG72AD4 delivers 50,000 cycles of electrical life at full load and 100,000 cycles for low-level or mechanical life, making it suitable for critical industrial control systems.
The MTG72AD4 delivers reliable electrical performance with an initial contact resistance of 10 mΩ max. and minimal load specifications: A contacts (50 mA at 10 VDC), AD and CD contacts (10 mA at 50 mV). It features electrical life of 50,000 cycles at full load and 100,000 cycles for low-level or mechanical life. The switch maintains contact bounce of 2 ms max. to ensure precise switching without signal degradation.
Engineered for harsh industrial environments, the MTG72AD4 operates within a temperature range of -40 °C to +85 °C. Its IP68 rating ensures complete protection against dust and water immersion, making it suitable for outdoor or submerged applications. The panel thickness of 11.5 mm (.452) max. provides structural integrity while maintaining compact design.
The switch utilizes various contact materials optimized for dry circuit applications up to 4 A. This versatility allows integration into diverse industrial systems, from low-voltage control circuits to higher-power applications. The multiple single functions enable flexible circuit design without compromising reliability.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles Minimal load:- A contacts: 50 mA 10 VDC- AD and CD contacts |
| Panel thickness | 11.5 mm (.452) max. Environmentally sealed (IP68) Multiple single functions available Various contact materials that allow usage from dry circuit applications up to 4 A Multiple single functions available Various contact |
| Operating temperature | -40 °C to +85 °C Low level or mechanical life : 100,000 cycles |
| Electrical Functions | MOM OFF MOM |
The APEMPanel Switches MTG72AD4 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles Minimal load:- A contacts: 50 mA 10 VDC- AD and CD contacts |
| Panel thickness | 11.5 mm (.452) max. Environmentally sealed (IP68) Multiple single functions available Various contact materials that allow usage from dry circuit applications up to 4 A Multiple single functions available Various contact |
| Operating temperature | -40 °C to +85 °C Low level or mechanical life : 100,000 cycles |
| Electrical Functions | MOM OFF MOM |
