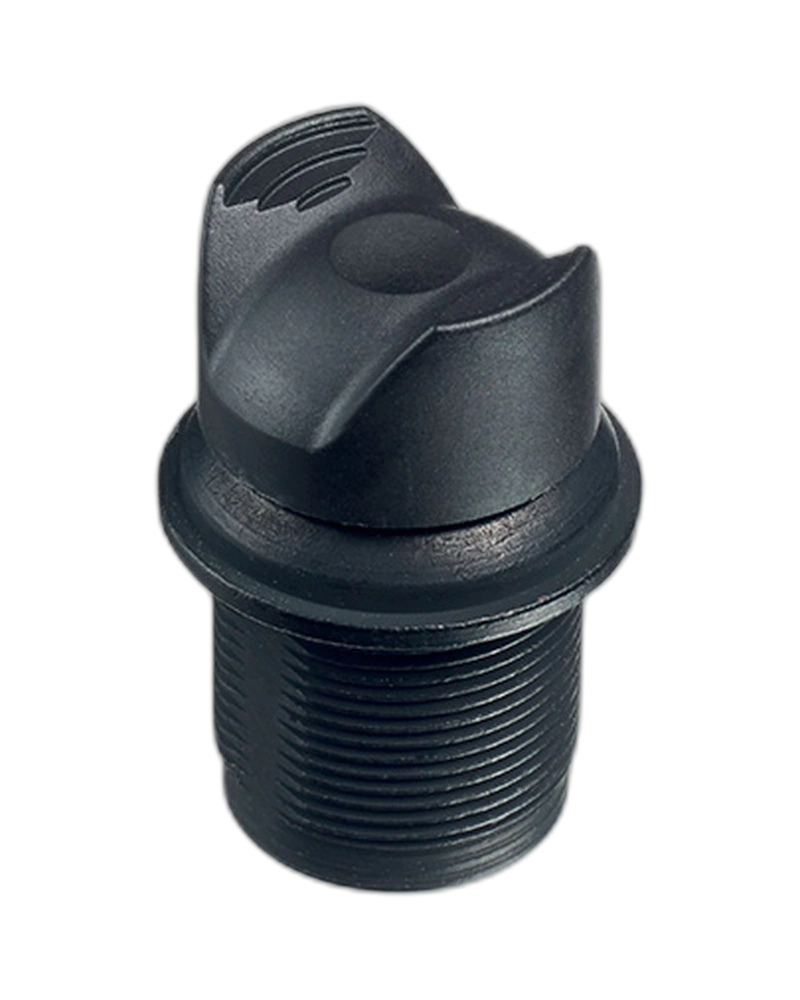

MTG72A2 MTG72A2 Panel Switch features MOM OFF MOM functionality for easy circuit control. Durable solder lug mounting ensures secure installation. Ideal for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles |
| Panel thickness | 11.5 mm (.452) max. |
| Initial contact resistance | 10 mΩ max. |
| Operating temperature | -40 °C to +85 °C |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles |
| Panel thickness | 11.5 mm (.452) max. |
| Operating temperature | -40 °C to +85 °C |
