APEM Autoswitches Switches and Pushbutton

Panel Switches MT62CD6 – Autoswitches UAE

The MT62CD6 Panel Switch features a sleek design and ON-ON functionality, ideal for controlling lights and fans in various electrical applications. Perfect for professionals and DIY enthusiasts.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Interested in this product? Panel Switches MT62CD6

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

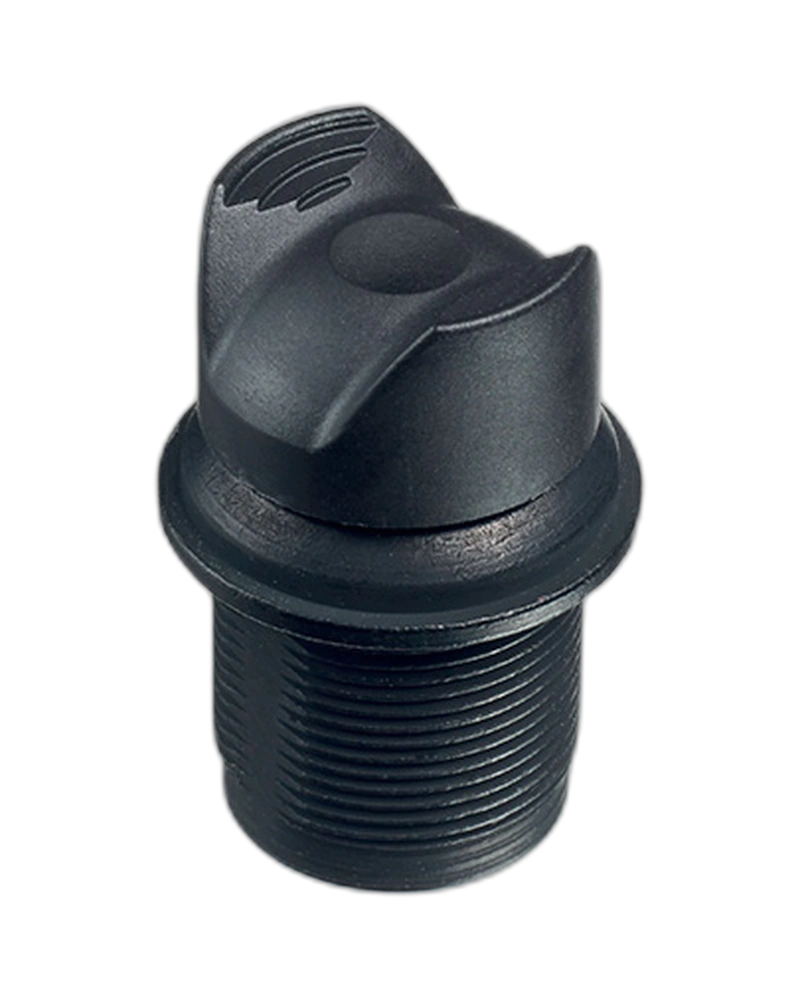

Panel Switches MT62CD6

The MT62CD6 Panel Switch features a sleek design and ON-ON functionality, ideal for controlling lights and fans in various electrical applications. Perfect for professionals and DIY enthusiasts. Select Quantity

Key Features

Insulation resistance: 1,000 MΩ min. at 500 VDC
Dielectric strength: 1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles Minimal load:- A contacts: 50 mA 10 VDC- AD and CD contacts
Panel thickness: 11.5 mm (.452) max.
Initial contact resistance: 10 mΩ max.
Operating temperature: -40 °C to +85 °C Low level or mechanical life : 100,000 cycles
Finish: Bright Chrome
Electrical Functions: ON ON

Feature	Specification
Insulation resistance	1,000 MΩ min. at 500 VDC
Dielectric strength	1,000 Vrms 50 Hz min. between terminals, 1,500 Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max. Electrical life at full load : 50,000 cycles Minimal load:- A contacts: 50 mA 10 VDC- AD and CD contacts
Panel thickness	11.5 mm (.452) max.
Operating temperature	-40 °C to +85 °C Low level or mechanical life : 100,000 cycles
Electrical Functions	ON ON
