The APEM Panel Switches LPI5124G1K21716 is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 500 Vrms 50Hz between terminals / 1,000 Vrms 50 Hz between terminals and ground; Insulation resistance: 10 MΩ at 500 VDC Max. currrent/voltage rating with resistive load :- 5 A NO/NC version : 5 A 12 VDC - 50,000 cycles / 100 mA 12 VDC - 1,000,000 cycles- 50 mA NO version : 50 mA 24 VDC - 5,000,000 cycles Min. current with; Storage temperature: -40°C to +70°C.

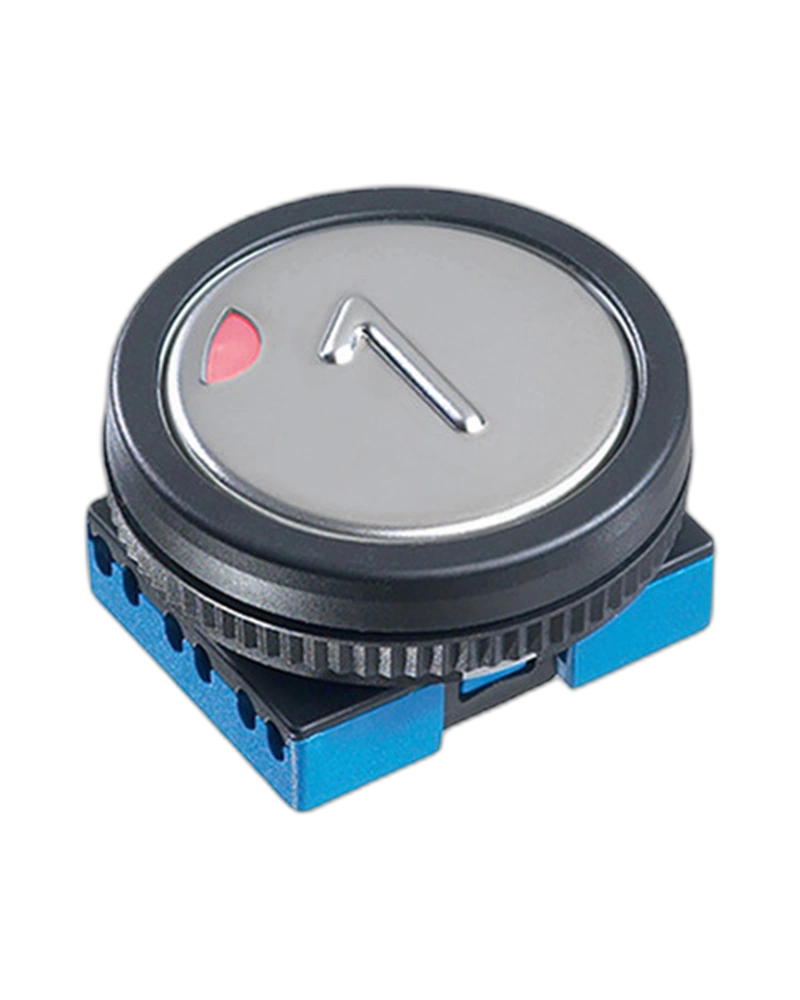

LPI5124G1K21716 LPI5124G1K21716 Panel Switch: 5 A NO NC rating, raised crimped actuator for durability. Select Quantity
| Feature | Specification |
|---|---|
| Voltage | 24V |
| Total travel | 2 mm ±0.3 mm Mechanical life : 1,000,000 cycles min |
| Feature | Specification |
|---|---|
| Dielectric strength | 500 Vrms 50Hz between terminals / 1,000 Vrms 50 Hz between terminals and ground |
| Insulation resistance | 10 MΩ at 500 VDC Max. currrent/voltage rating with resistive load :- 5 A NO/NC version : 5 A 12 VDC - 50,000 cycles / 100 mA 12 VDC - 1,000,000 cycles- 50 mA NO version : 50 mA 24 VDC - 5,000,000 cycles Min. current with |
| Storage temperature | -40°C to +70°C |
| Operating force | 2.5 to 5 N (unsealed) |
| LED Color | Green,LED Voltage:24V |
| Electrical Functions | 5A (NO/NC) |
| Operating temperature | -20 °C to +65 °C |
| Sealing | Sealed |
| Mounting | Front Mounting |
| Feature | Specification |
|---|---|
| Voltage | 24V |
| Total travel | 2 mm ±0.3 mm Mechanical life : 1,000,000 cycles min |
