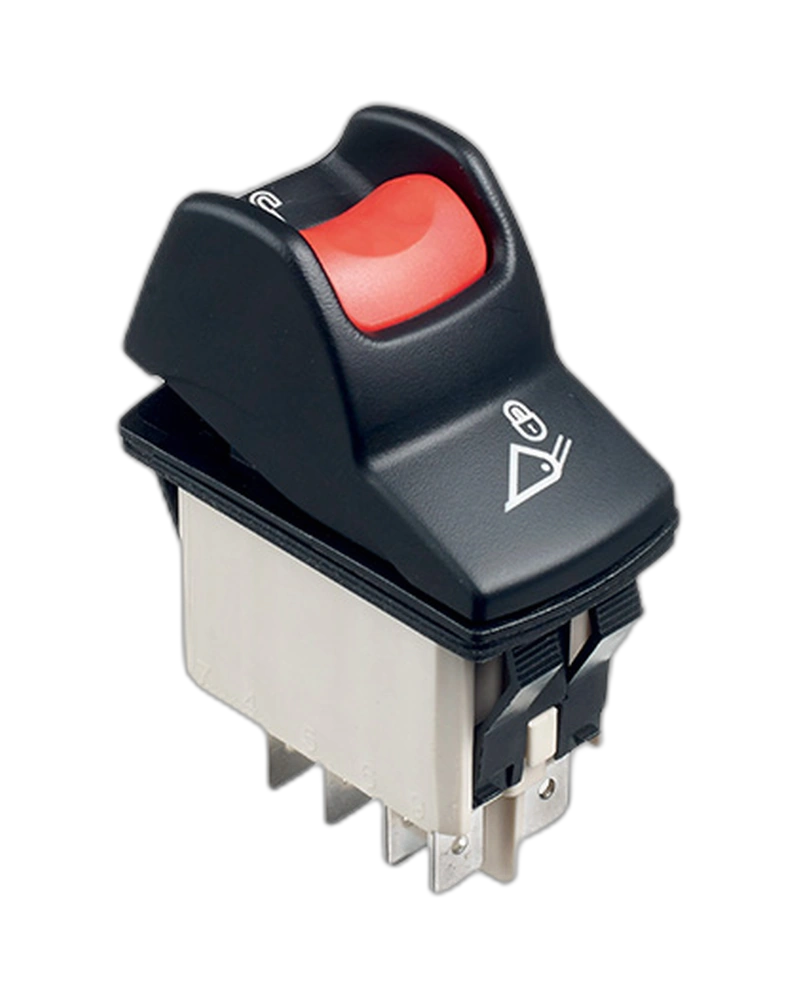

The APEM Panel Switches KL49CAZJG22RNXXA6 is a double-pole autoswitch designed for industrial applications. Featuring IP69K sealing, 1,000 MΩ insulation resistance, and 2,000 Vrms dielectric strength, this switch ensures robust performance in harsh environments. With laser-etched symbols and optional LED illumination, it delivers reliable operation from -40°C to +85°C.
The APEM Panel Switches KL49CAZJG22RNXXA6 is a high-performance double-pole autoswitch engineered for demanding industrial environments. This switch combines exceptional sealing capabilities (IP69K), robust electrical characteristics including 1,000 MΩ insulation resistance at 500 VDC and 2,000 Vrms dielectric strength, with a wide operating temperature range of -40°C to +85°C. Its patented ergonomic design, laser-etched symbols, and optional 24V red LED illumination provide intuitive operation and enhanced visibility in critical applications. The switch is rated for 150,000 mechanical cycles and features a one-position protected design to ensure safe and reliable control in high-stress industrial systems.
The APEM Panel Switches KL49CAZJG22RNXXA6 delivers exceptional environmental resilience through IP69K sealing, meeting stringent salt spray resistance standards (96 hours per IEC 512-6). This ensures reliable performance in harsh industrial settings, including marine, chemical, and high-salinity environments. The switch is also rated for operation across a wide temperature range (-40°C to +85°C), making it suitable for extreme conditions.
With a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms (50 Hz), this switch ensures safe and stable electrical operation. The initial contact resistance is limited to 10 mΩ max, providing low resistance for efficient current flow. The double-pole design with silver contacts supports reliable switching in high-demand applications.
Engineered for longevity, the switch offers a minimum of 150,000 mechanical cycles, ensuring sustained performance in demanding industrial processes. Its one-position protected design minimizes the risk of accidental activation, while the patented ergonomic layout enhances user safety and ease of operation.
The switch supports both illuminated and non-illuminated configurations with optional 24V red LED illumination, providing clear visual feedback in low-light conditions. The laser-etched symbols ensure precise identification of functions, including the parking brake symbol (Area B), critical for safety and compliance in industrial control systems.
| Feature | Specification |
|---|---|
| Sealing | IP69K,Wiring:G,Side B Leds:LED 24V Red,Area B Symbols:Parking Brake |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Sealing |
| options | K : IP68 to front panel components of switch only according to IEC 60529Z : IP69K panel sealing according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C Mechanical life : 150,000 cycles min. One protected position Patented intuitive ergonomics Laser etched symbols Illuminated or non-illuminated Optionally sealed to IP69K Patented intuitive ergonomics Las |
| Electrical Functions | ON OFF ON |
The APEMPanel Switches KL49CAZJG22RNXXA6 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP69K,Wiring:G,Side B Leds:LED 24V Red,Area B Symbols:Parking Brake |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Sealing |
| options | K : IP68 to front panel components of switch only according to IEC 60529Z : IP69K panel sealing according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C Mechanical life : 150,000 cycles min. One protected position Patented intuitive ergonomics Laser etched symbols Illuminated or non-illuminated Optionally sealed to IP69K Patented intuitive ergonomics Las |
| Electrical Functions | ON OFF ON |
