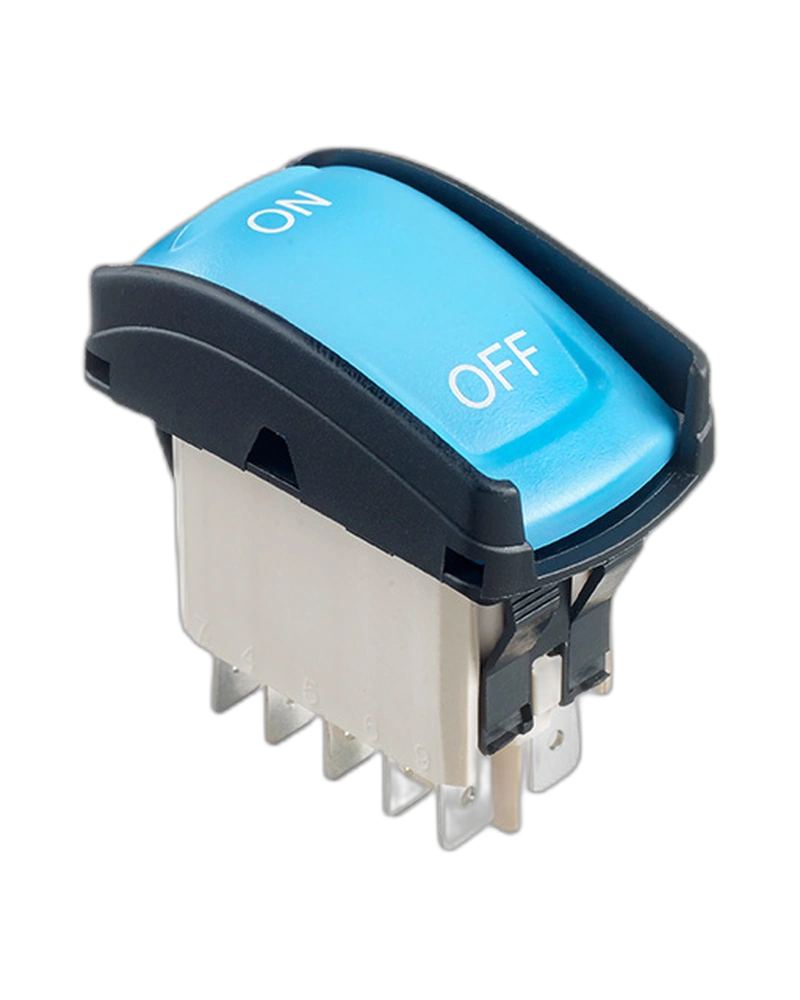

KH149AAZXXG12N040305 Versatile KH149AAZXXG12N040305 Panel Switch with durable construction and sleek design. Ideal for controlling lights and fans with easy ON OFF ON functionality. Select Quantity
| Feature | Specification |
|---|---|
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON OFF ON |
