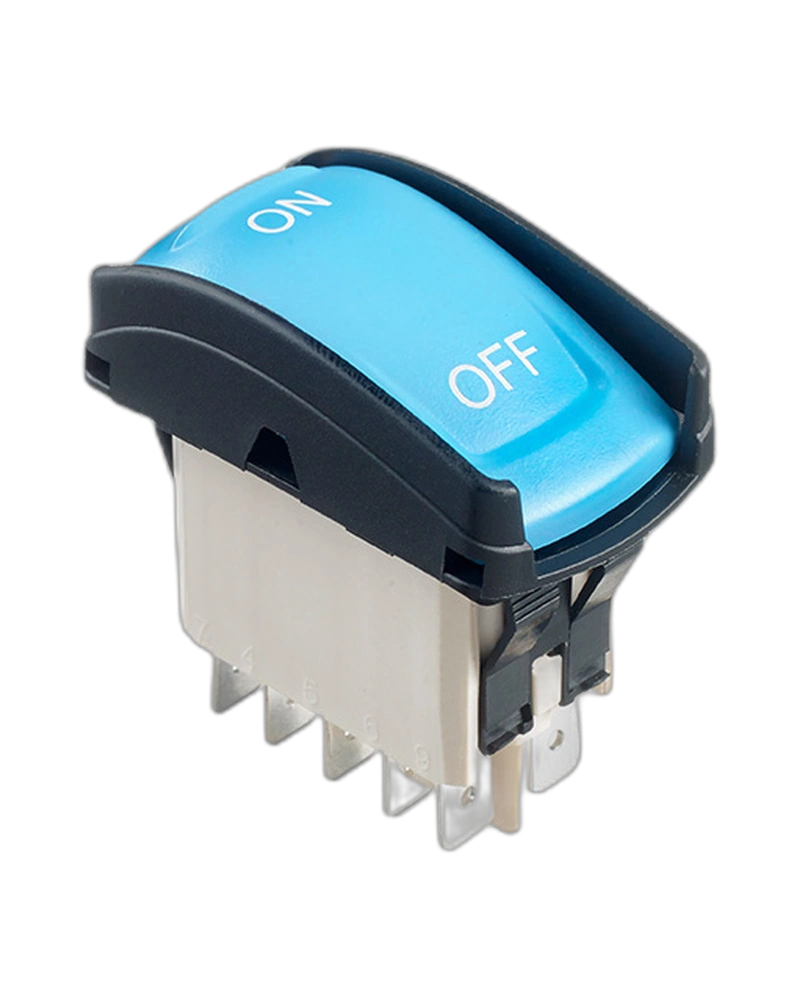

The APEM Panel Switches KH146FDZXXG26N is a robust rocker switch designed for industrial applications. With an IP69K rating, it offers exceptional protection against dust, water, and harsh environments. This switch features silver-plated brass terminals, a wide operating temperature range from -40°C to +85°C, and supports 60W 24VDC loads with 10,000 cycles.
The APEM Panel Switches KH146FDZXXG26N is a high-performance rocker switch engineered for demanding industrial environments. This autoswitch delivers reliable operation in extreme conditions with a robust construction featuring a PA 6-6 case and ABS bezel. Its IP69K sealing ensures complete protection against dust, water, and corrosive substances, while the silver-plated brass terminals provide excellent conductivity and durability. The switch operates within a wide temperature range of -40°C to +85°C and is rated for 60W 24VDC loads with 10,000 operational cycles, making it ideal for applications requiring high reliability and long-term performance.
The APEM Panel Switches KH146FDZXXG26N is engineered for extreme environmental conditions. Its IP69K rating ensures complete protection against dust, water, and corrosive substances, meeting stringent industrial standards. The switch demonstrates exceptional salt spray resistance (96 hours per IEC 512-6, test 11f) and vibration resistance (10-500 Hz / 10 g per IEC 60068-2-6), making it suitable for harsh industrial settings where exposure to moisture, salt, or mechanical stress is common.
With a dielectric strength of 2,000 Vrms 50 Hz min., the switch ensures reliable electrical isolation between terminals. The initial contact resistance is limited to 10 mΩ max, providing low resistance for efficient current flow. The switch supports 60W 24VDC loads with a rated life of 10,000 cycles, ensuring long-term performance in high-demand applications.
The switch features a PA 6-6 case and ABS bezel, offering lightweight yet durable construction. Terminals are made of brass with solid silver grain and either silver plating (for standard use) or gold plating (for enhanced corrosion resistance). The contact roller is brass with nickel plating, ensuring smooth operation and extended service life.
The APEM Panel Switches KH146FDZXXG26N provides versatile options for industrial use, including laser etched or pad printed symbols, illuminated or non-illuminated variants, and a wide range of colors. Its robust design allows for easy integration into systems requiring high reliability, such as manufacturing equipment, control panels, and machinery where environmental resilience is critical.
| Feature | Specification |
|---|---|
| panel thickness | between 2 mm and 3.5 mm Recommended |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) : - function 6 : 100 W 24 VDC, 10,000 cycles - other |
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| functions | 60 W 24 VDC, 10,000 cycles |
The APEMPanel Switches KH146FDZXXG26N is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| panel thickness | between 2 mm and 3.5 mm Recommended |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) : - function 6 : 100 W 24 VDC, 10,000 cycles - other |
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| functions | 60 W 24 VDC, 10,000 cycles |
