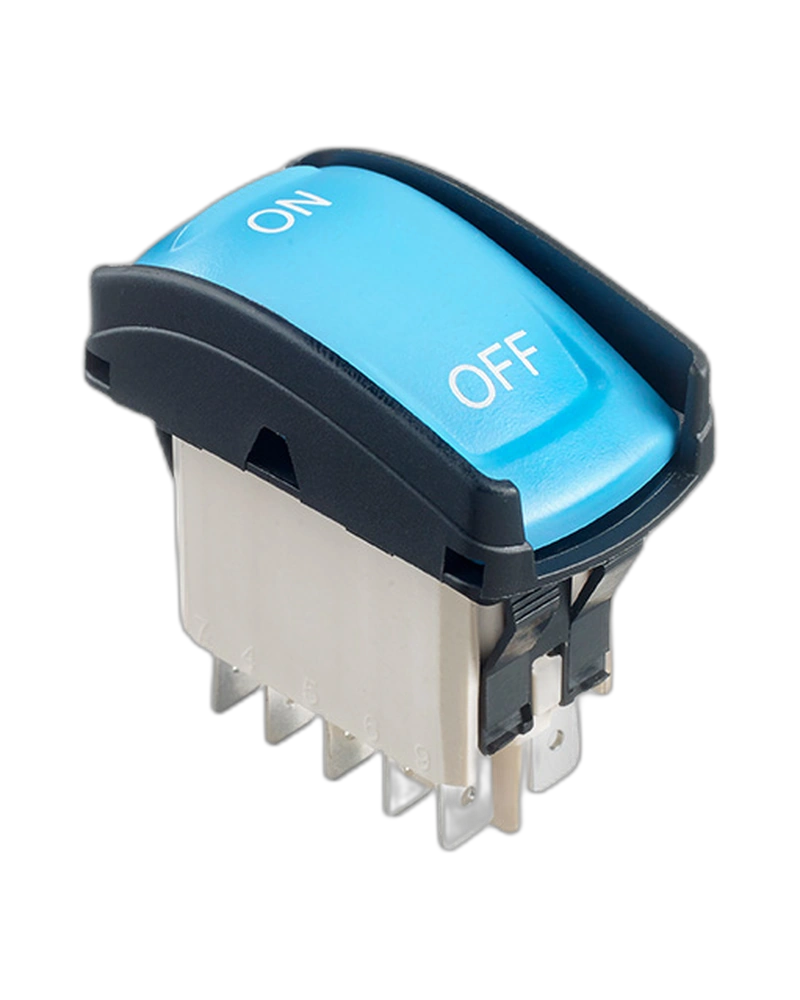

The APEM Panel Switches KH146AAZXNG22NXXXX23 is a robust autoswitch designed for industrial environments. Featuring IP69K sealing, silver contacts, and 24 VDC operation, this switch delivers reliable performance in harsh conditions with 10,000 cycles and a temperature range of -40°C to +85°C. Ideal for demanding applications requiring high durability and electrical safety.
The APEM Panel Switches KH146AAZXNG22NXXXX23 is a high-performance autoswitch engineered for industrial use, combining exceptional durability with precise electrical functionality. With IP69K protection against dust and water, this switch ensures reliable operation in extreme environments, including high-salt conditions and rigorous mechanical stress. Its silver contacts provide low resistance and long service life, while the 24 VDC rating and 10,000-cycle durability make it suitable for critical applications where reliability is paramount.
The switch operates at 24 VDC with a maximum load capacity of 100 W for function 6, ensuring reliable performance under heavy electrical loads. It features a dielectric strength of 2,000 Vrms 50 Hz and an insulation resistance of 1.000 MΩ min. at 500 VDC, meeting stringent electrical safety standards. The switch is designed for 10,000 operational cycles with silver contacts, providing long-term durability and minimal wear.
Engineered for extreme conditions, this switch withstands salt spray for 96 hours (IEC 512-6 test 11f) and vibration up to 10-500 Hz at 10 g (IEC 60068-2-6). The operating temperature range spans from -40°C to +85°C, making it suitable for both cold and hot industrial environments. Additionally, the IP69K rating ensures complete protection against dust and water, even in harsh marine or cleaning environments.
Available in panel thicknesses between 2 mm and 3.5 mm, the switch is sealed to IP69K and features a robust construction with protected against accidental actuation. It supports a wide range of colors and can be customized with laser etched or pad printed symbols, ensuring visual clarity and compliance with industry standards. The switch is non-illuminated by default but includes a 12V blue LED option for enhanced visibility.
This autoswitch is ideal for industrial control panels where high durability and electrical safety are critical. Its 24 VDC operation and 10,000-cycle rating make it suitable for applications such as ventilation systems, machinery controls, and automated processes requiring frequent switching. The switch's compatibility with standard wiring and its ability to function in extreme environments ensure seamless integration into demanding industrial setups.
| Feature | Specification |
|---|---|
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON ON Contact Materials: Silver |
The APEMPanel Switches KH146AAZXNG22NXXXX23 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON ON Contact Materials: Silver |
