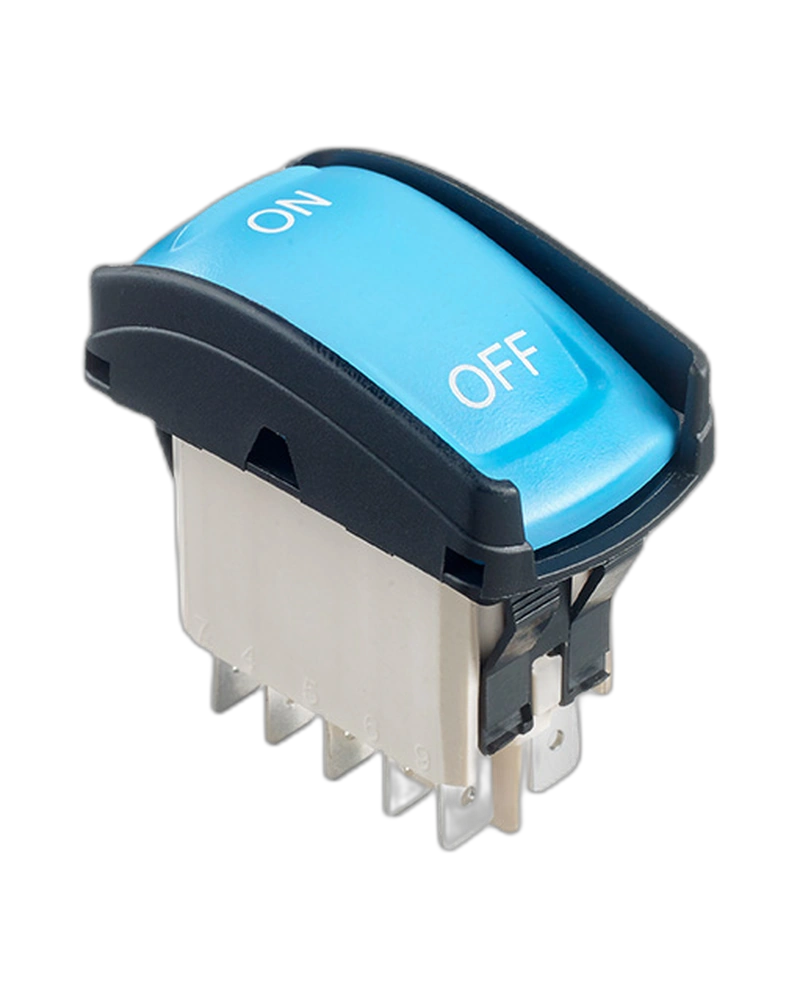

The APEM Panel Switches KH146AAZXFG22NXXXX27 is a robust autoswitch designed for demanding industrial environments. Featuring IP69K sealing, 10,000 cycle reliability at 60W 24VDC, and wide operating temperatures from -40°C to +85°C, this switch ensures reliable operation in harsh conditions. Ideal for applications requiring high durability and resistance to vibration and salt spray.
The APEM Panel Switches KH146AAZXFG22NXXXX27 is a high-performance autoswitch engineered for extreme industrial conditions. With IP69K protection against dust and water, this switch maintains functionality in environments exposed to salt spray, vibration, and extreme temperatures ranging from -40°C to +85°C. Its silver contacts deliver reliable operation at 60W 24VDC with 10,000 cycles, making it suitable for critical applications where durability and long-term performance are essential.
Engineered for harsh industrial settings, the KH146AAZXFG22NXXXX27 features IP69K sealing per DIN 40050-9, ensuring complete protection against dust and water ingress. It withstands 96 hours of salt spray exposure (IEC 512-6, test 11f) and 10-500 Hz vibration at 10 g (IEC 60068-2-6), making it ideal for marine, chemical, and outdoor applications where environmental stressors are prevalent.
The switch delivers robust electrical characteristics with a dielectric strength of 2,000 Vrms 50 Hz minimum between terminals and an insulation resistance of 1.000 MΩ minimum at 500 VDC. Silver contacts ensure low initial contact resistance (10 mΩ max) and reliable operation at 60W 24VDC for 10,000 cycles.
Available in a wide range of colors and with laser etched or pad printed symbols, the switch supports both illuminated and non-illuminated options. Its compact panel thickness (2-3.5 mm) and protection against accidental actuation ensure user safety and adaptability to diverse installation requirements.
Operating reliably across temperatures from -40°C to +85°C, the KH146AAZXFG22NXXXX27 maintains consistent performance in extreme thermal conditions. This wide temperature range ensures functionality in both freezing environments and high-heat industrial processes without degradation.
| Feature | Specification |
|---|---|
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON ON |
The APEMPanel Switches KH146AAZXFG22NXXXX27 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON ON |
