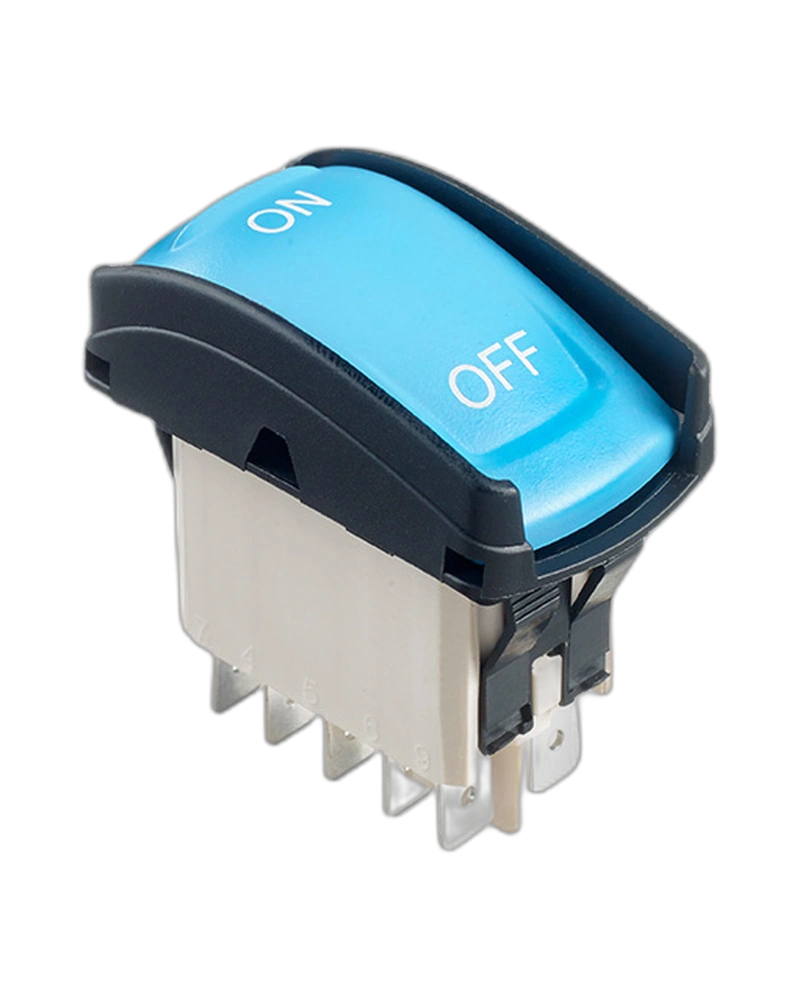

The APEM Panel Switches KH136DAZXXG14N04XX05 is a robust autoswitch designed for demanding industrial environments. Featuring IP69K sealing, 10,000 cycle reliability at 60W 24VDC, and operation across -40°C to +85°C, this switch ensures durability in harsh conditions while offering wide color options and customizable symbols.
The APEM Panel Switches KH136DAZXXG14N04XX05 is a high-performance autoswitch engineered for extreme industrial applications. With IP69K protection against dust and water, it withstands rigorous environmental challenges including 96-hour salt spray testing and vibration resistance up to 10-500 Hz. This switch delivers reliable operation in temperatures ranging from -40°C to +85°C, making it ideal for use in marine, chemical, and manufacturing settings where durability and precision are critical. Its robust construction, with silver contacts rated for 100W 24VDC loads over 10,000 cycles, ensures long-term performance without compromising safety or functionality.
Engineered for extreme conditions, the KH136DAZXXG14N04XX05 features IP69K sealing per DIN 40050-9, ensuring complete protection against dust and water immersion. It withstands 96 hours of salt spray testing (IEC 512-6, test 11f) and vibration resistance up to 10-500 Hz at 10 g (IEC 60068-2-6), making it suitable for marine, chemical, and offshore environments where exposure to harsh elements is common.
The switch delivers high electrical reliability with a minimum insulation resistance of 1.000 MΩ at 500 VDC and a dielectric strength of 2,000 Vrms (50 Hz). Silver contacts support 100W 24VDC loads over 10,000 cycles, ensuring consistent performance under heavy usage without degradation.
Available in a wide range of colors and with laser etched or pad printed symbols, the switch can be configured as illuminated or non-illuminated. This flexibility allows for seamless integration into diverse industrial control panels while maintaining clear operational visibility.
Designed for extreme temperature variations, the KH136DAZXXG14N04XX05 operates reliably from -40°C to +85°C (-40°F to +185°F), enabling use in both freezing and high-heat environments such as refrigeration systems, chemical processing, and automotive manufacturing.
| Feature | Specification |
|---|---|
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON ON |
The APEMPanel Switches KH136DAZXXG14N04XX05 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP69K according to DIN 40050-9 Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Insulation resistance | 1.000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals Current/voltage rating with lamp load - silver contacts (A) :- function 6 : 100 W 24 VDC, 10,000 cycles- other |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Salt spray resistance : 96 hours according to IEC 512-6, test 11f Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| panel thickness | between 2 mm and 3.5 mm Protected against accidental actuation Wide choice of colors Laser etched or pad printed symbols Illuminated or non-illuminated Sealed to IP69K Wide choice of colors Laser etched or pad printed sy |
| functions | 60 W 24 VDC, 10,000 cycles |
| Electrical Functions | ON ON |
