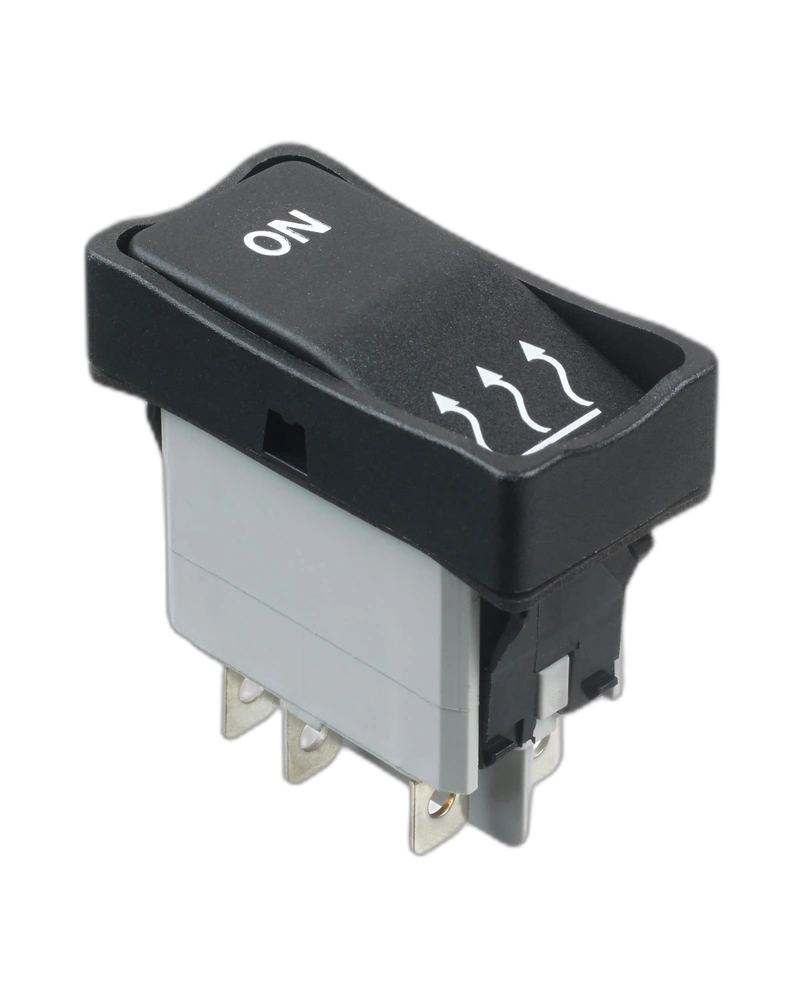

KGR21XX Industrial SPDT and DPDT models, IP65 sealed, rated up to 15 amps. Perfect for robust applications requiring reliable switching. Select Quantity
| Feature | Specification |
|---|---|
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C 3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resi |
| Panel thickness | 0.8 mm to 4.6 mm Recommended thickness : between 2 mm and 3.5 mm Panel cut-out : 36.80 x 21.08 mm (1.149 x .830) |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
