Explore performance details, construction highlights, applications, and technical information in one clear overview.

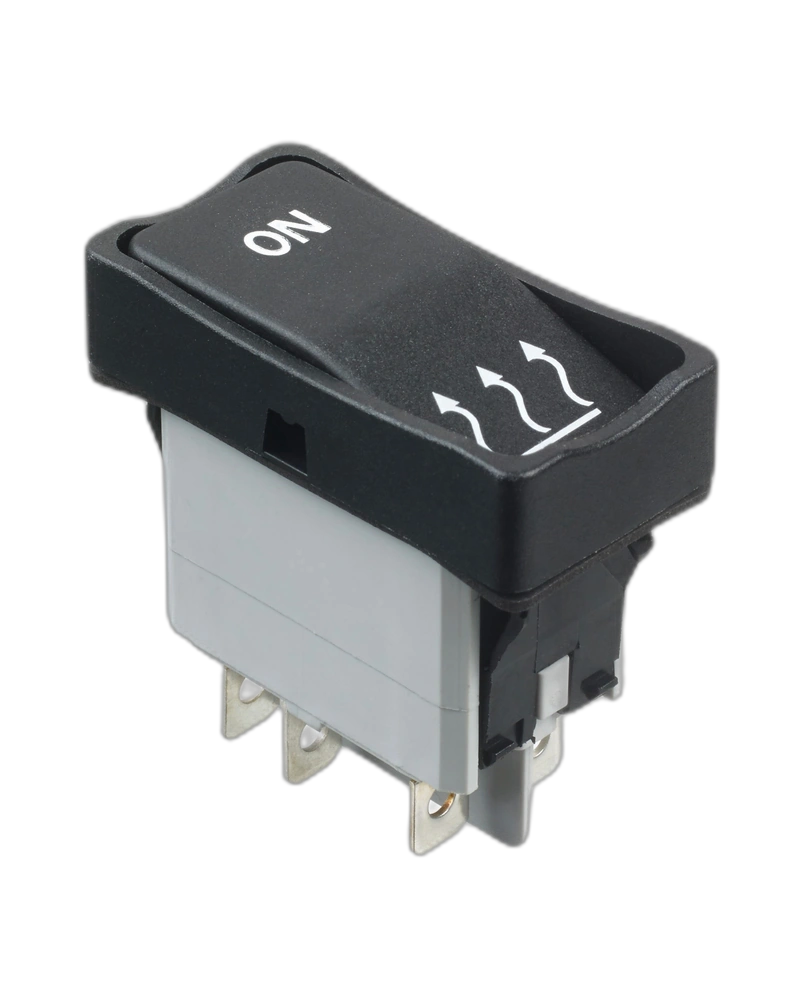

The APEM Panel Switches KG473A2XXA21XX is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens; Initial contact resistance: 10 mΩ max. at 1 A 2 VDC; Insulation resistance: 1,000 MΩ min. at 500 VDC.
The Panel Switches KG473A2XXA21XX is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | MOM OFF MOM |
The APEMPanel Switches KG473A2XXA21XX is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | MOM OFF MOM |
