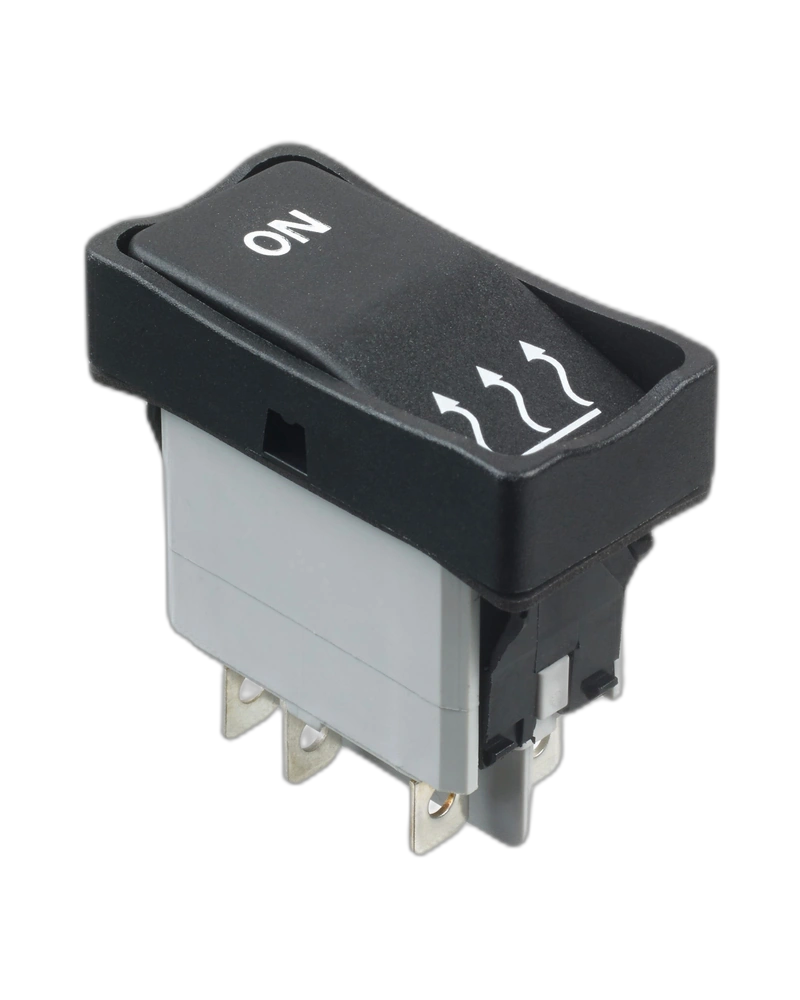

Panel Switches KG472A2XXA21XX

KG472A2XXA21XX KG472A2XXA21XX Panel Switch features MOM OFF MOM configuration for versatile control and silver grain contacts for reliable electrical connections. Select Quantity

Key Features

• Number Of Poles: Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens
• Electrical Functions: MOM OFF MOM
• voltage rating: - functions 1 (ON-OFF) and 6 (ON-ON) : 15 A 12 VDC, 10 A 24 VDC max.,10 mA 14 VDC min.- functions 4 ( ON ON ON) and 4-1R (ON ON MOM) :8 A 12 VDC, 5 A 24 VDC max.- other
• functions: 10 A 12 VDC, 8 A 24 VDC max.
• Initial contact resistance: 10 mΩ max. at 1 A 2 VDC
• Insulation resistance: 1,000 MΩ min. at 500 VDC
• Dielectric strength: 2,000 Vrms 50 Hz min. between terminals
• Electrical life: 10,000 cycles min.
• Electrical life: 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature: 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature: 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature: 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature: 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C
• Operating temperature: 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Mechanical life : 2 position models : 100,000 cycles min.3 position models : 30,000 cycles min. Protected rocker Illuminated or non-illuminated Sealed to IP65 Illuminated or non-illuminated Sealed to IP65 Sealed to IP65

Technical Specifications
