Explore performance details, construction highlights, applications, and technical information in one clear overview.

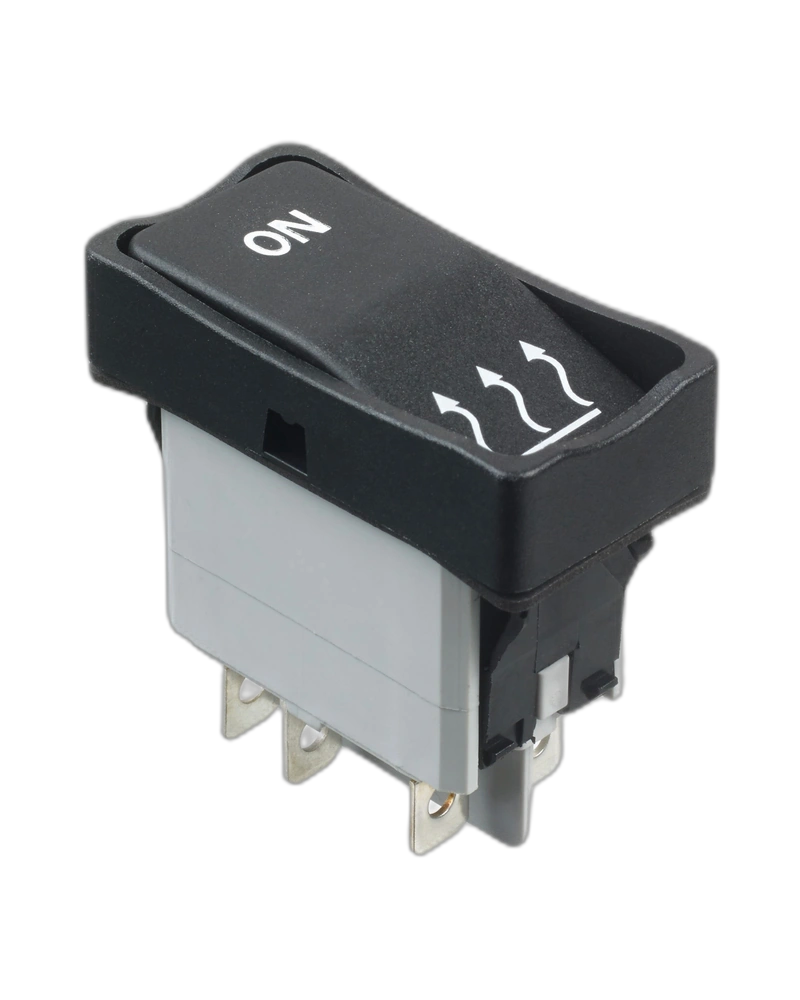

The APEM Panel Switches KG463A2XXA21XX is a double pole, sealed IP65 autoswitch designed for robust industrial use. Featuring silver contacts, 10 mΩ max. initial contact resistance at 1 A 2 VDC, and 1,000 MΩ min. insulation resistance at 500 VDC, this switch ensures reliable operation in harsh environments. Ideal for applications requiring high durability and electrical safety.
The APEM Panel Switches KG463A2XXA21XX is a double pole, sealed IP65 autoswitch engineered for demanding industrial environments. This switch delivers exceptional reliability with silver contacts, low initial contact resistance (10 mΩ max. at 1 A 2 VDC), and high insulation resistance (1,000 MΩ min. at 500 VDC). Designed to withstand extreme conditions including temperature ranges from -40 °C to +85 °C, shock resistance (100 g per IEC 512-4), and vibration resistance (10-500 Hz at 10 g), it ensures consistent performance in applications where electrical safety and durability are critical.
The APEM Panel Switches KG463A2XXA21XX supports electrical functions up to 10 A 12 VDC and 8 A 24 VDC. It features a 10 mΩ max. initial contact resistance at 1 A 2 VDC and 1,000 MΩ min. insulation resistance at 500 VDC. The dielectric strength is 2,000 Vrms 50 Hz min. between terminals, ensuring robust electrical isolation.
Engineered for extreme conditions, this switch operates within a temperature range of -40 °C to +85 °C. It meets stringent environmental standards including shock resistance (100 g per IEC 512-4, test 6c) and vibration resistance (10-500 Hz at 10 g per IEC 512-4, test 6d). Additionally, it is salt spray resistant, making it suitable for harsh industrial settings.
With a minimum electrical life of 10,000 cycles, the switch ensures long-term reliability. Its sealed design (IP65) protects against dust and water ingress, while the double pole configuration allows for safe control of two circuits simultaneously. The switch is non-illuminated with a black bezel and full rocker shape for ergonomic use.
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON ON |
The APEMPanel Switches KG463A2XXA21XX is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON ON |
