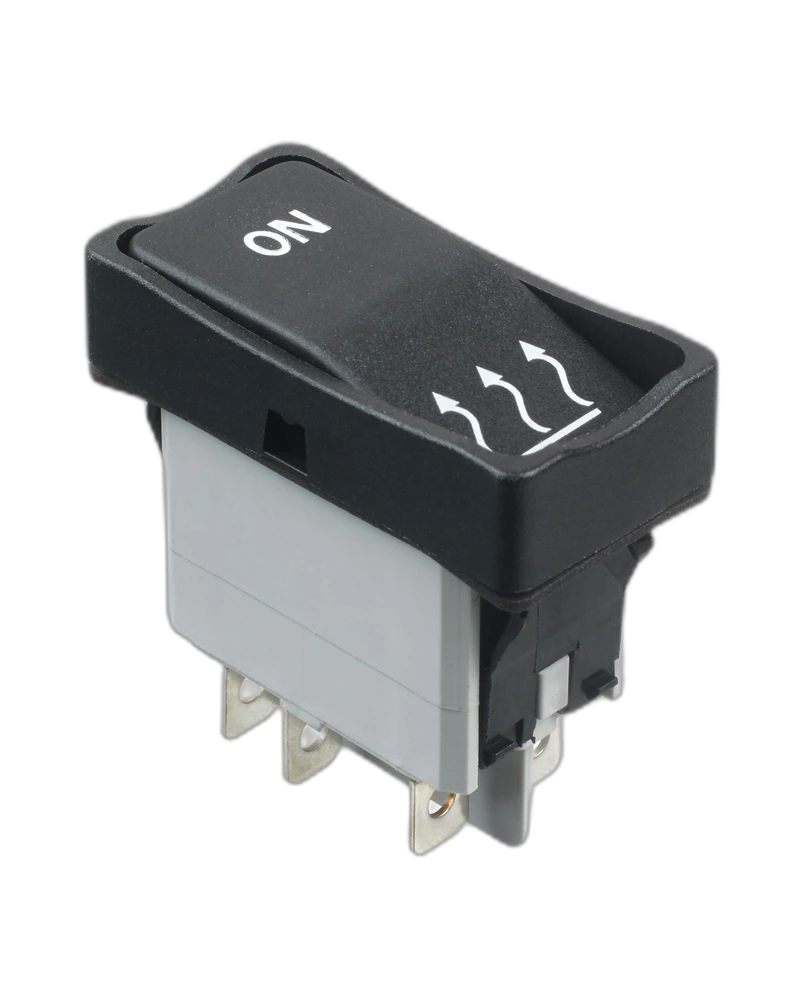

the KG452A2XXA21XX Panel Switch features MOM ON functionality and silver grain contacts for reliable electrical control and efficient conductivity. Select Quantity
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | MOM ON |
