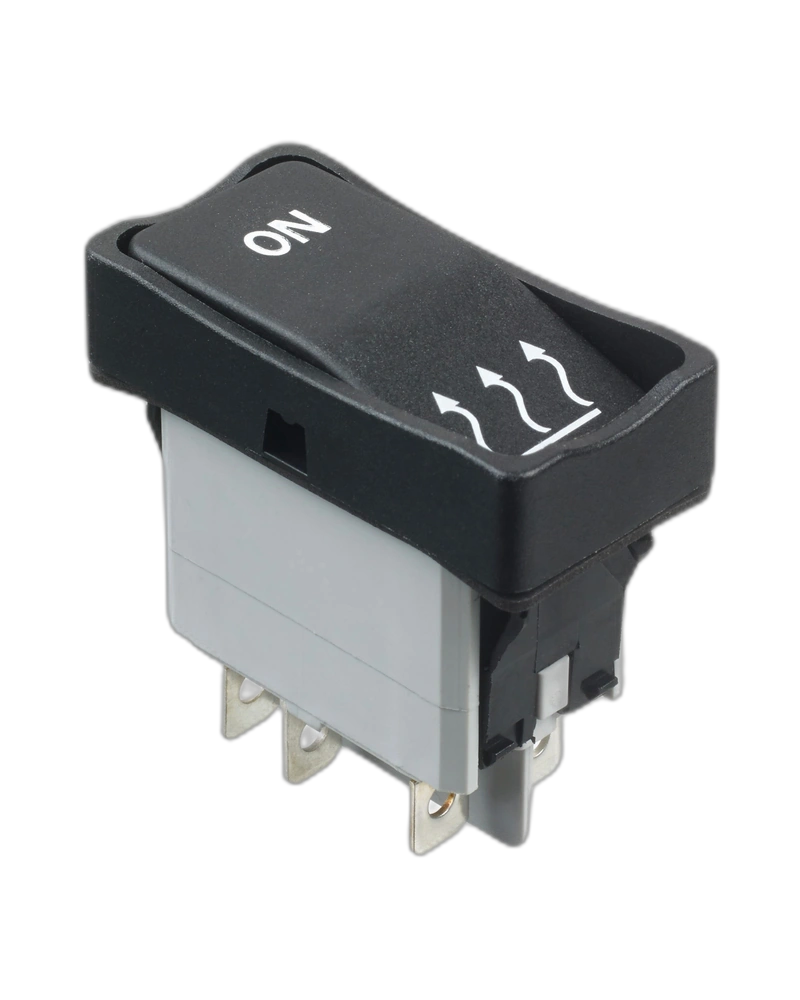

The APEM Panel Switches KG412A2XXA21XX is a double pole, sealed IP65 autoswitch designed for robust industrial use. Featuring silver contacts, 10 mΩ max. initial contact resistance at 1 A 2 VDC, and 1,000 MΩ min. insulation resistance at 500 VDC, this switch ensures reliable operation in harsh environments. Ideal for applications requiring high durability and electrical safety.
The APEM Panel Switches KG412A2XXA21XX is a double pole, sealed IP65 autoswitch engineered for demanding industrial environments. This switch delivers exceptional reliability with silver contacts, low initial contact resistance (10 mΩ max. at 1 A 2 VDC), and high insulation resistance (1,000 MΩ min. at 500 VDC). Designed to withstand extreme conditions including temperature ranges from -40 °C to +85 °C, shock resistance (100 g per IEC 512-4), and vibration resistance (10-500 Hz at 10 g per IEC 512-4), it ensures consistent performance in challenging industrial settings where electrical safety and durability are critical.
The APEM Panel Switches KG412A2XXA21XX supports electrical functions up to 10 A 12 VDC and 8 A 24 VDC. It features a double pole configuration with silver contacts, ensuring low resistance and high reliability. Initial contact resistance is 10 mΩ max. at 1 A 2 VDC, while insulation resistance reaches 1,000 MΩ min. at 500 VDC. Dielectric strength is 2,000 Vrms 50 Hz min. between terminals, providing robust electrical isolation.
Engineered for extreme conditions, this switch operates within a temperature range of -40 °C to +85 °C. It meets stringent environmental standards including shock resistance (100 g per IEC 512-4, test 6c) and vibration resistance (10-500 Hz at 10 g per IEC 512-4, test 6d). Additionally, it is resistant to salt spray, ensuring long-term reliability in harsh industrial environments.
With a minimum electrical life of 10,000 cycles, the switch maintains consistent performance over extended periods. The double pole design allows for safe and efficient control of two circuits simultaneously, while the sealed IP65 construction protects against dust and water ingress, making it suitable for demanding applications.
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON OFF |
The APEMPanel Switches KG412A2XXA21XX is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON OFF |
