Explore performance details, construction highlights, applications, and technical information in one clear overview.

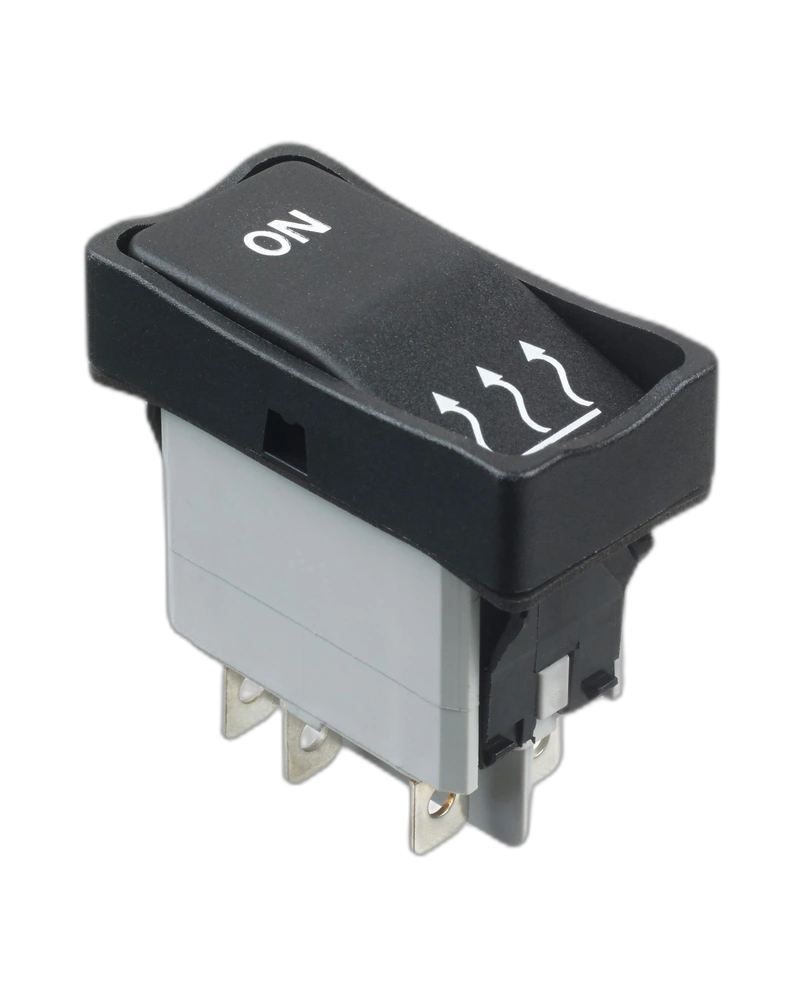

KG412A2XXA Industrial SPDT and DPDT models, sealed to IP65, with a 15 amp rating. Ideal for robust applications requiring reliable performance. Select Quantity
| Feature | Specification |
|---|---|
| Panel thickness | 0.8 mm to 4.6 mm Recommended thickness : between 2 mm and 3.5 mm Panel cut-out : 36.80 x 21.08 mm (1.149 x .830) |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C (-40 °F to +185 °F) 3 position models : -10 °C to + 65 °C (-14 °F to +149 °F) Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g accordi |
| Number Of Poles | Double Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON OFF |
