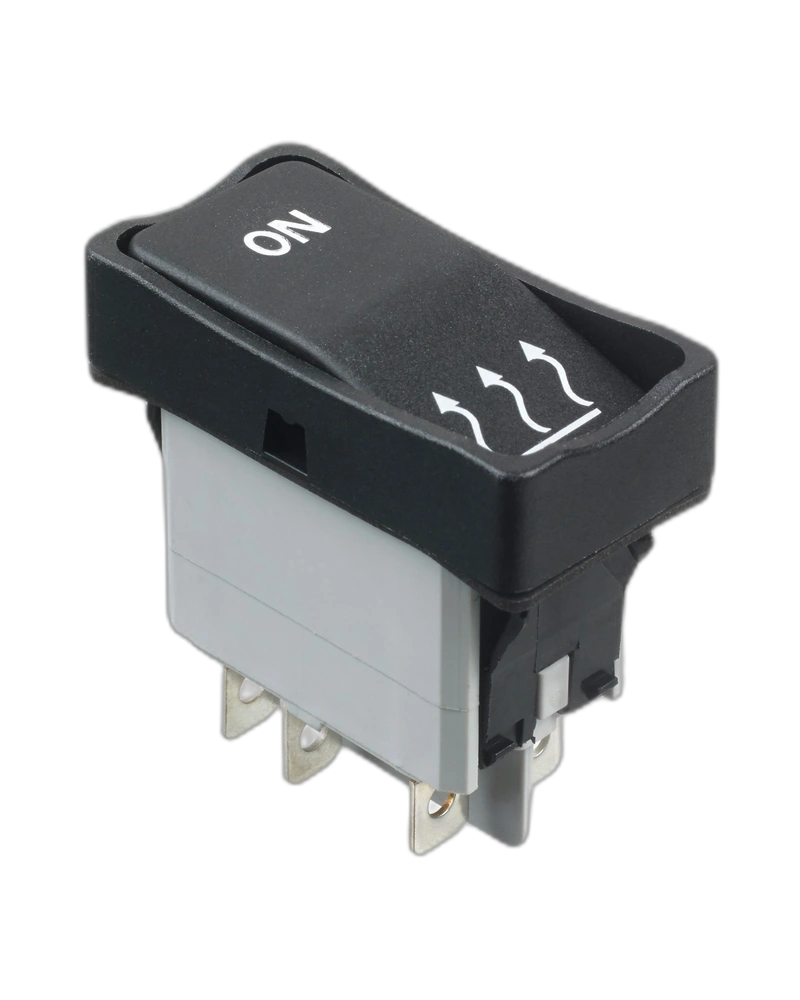

The APEM Panel Switches KG313A2XXA21XX is a single pole, sealed IP65 autoswitch designed for reliable operation in demanding industrial environments. Featuring 10 A 12 VDC and 8 A 24 VDC electrical capabilities, this non-illuminated, black bezel rocker switch offers robust performance with a 10,000 cycle electrical life and 2,000 Vrms dielectric strength. Ideal for applications requiring high shock and vibration resistance.
The APEM Panel Switches KG313A2XXA21XX is a single pole, sealed IP65 autoswitch engineered for industrial use in harsh conditions. This non-illuminated rocker switch delivers precise ON/OFF functionality with robust electrical characteristics, including a maximum contact resistance of 10 mΩ at 1 A 2 VDC and an insulation resistance of 1,000 MΩ at 500 VDC. Designed to withstand extreme environmental challenges, it meets stringent requirements for shock resistance (100 g per IEC 512-4 test 6c), vibration resistance (10-500 Hz at 10 g per IEC 512-4 test 6d), and salt spray exposure, ensuring reliable performance across a wide temperature range from -40 °C to +85 °C.
The KG313A2XXA21XX delivers precise electrical switching with a maximum contact resistance of 10 mΩ at 1 A 2 VDC, ensuring minimal voltage drop during operation. Its insulation resistance of 1,000 MΩ at 500 VDC provides exceptional isolation between terminals, while the dielectric strength of 2,000 Vrms 50 Hz guarantees reliable performance under high-voltage stress conditions.
Engineered for extreme environments, this switch withstands shock resistance (100 g per IEC 512-4 test 6c), vibration resistance (10-500 Hz at 10 g per IEC 512-4 test 6d), and salt spray exposure. The IP65 rating ensures protection against dust and water jets, maintaining functionality in industrial settings with high mechanical stress.
Operating within a temperature range of -40 °C to +85 °C, the KG313A2XXA21XX is suitable for applications across diverse industrial conditions. This wide range ensures consistent performance in both extreme cold and high-heat environments, making it ideal for outdoor installations or harsh indoor settings.
| Feature | Specification |
|---|---|
| Number Of Poles | Single Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON OFF |
The APEMPanel Switches KG313A2XXA21XX is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Number Of Poles | Single Pole,Bezel:Black, Sealed to IP65,Contact Materials:Silver,Lamp Wiring:A,Rocker Shapes:Full Rocker,Side A Lamps:Without LED,Side A Lens Color:No Lens,Side B Lamps:Without LED,Side B Lens Color:No Lens |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals |
| Electrical life | 10,000 cycles min. Degree of protection : IP65 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resistance |
| Operating temperature | 2 position models : -40 °C to + 85 °C3 position models : -10 °C to + 65 °C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray resis |
| functions | 10 A 12 VDC, 8 A 24 VDC max. |
| Electrical Functions | ON OFF |
