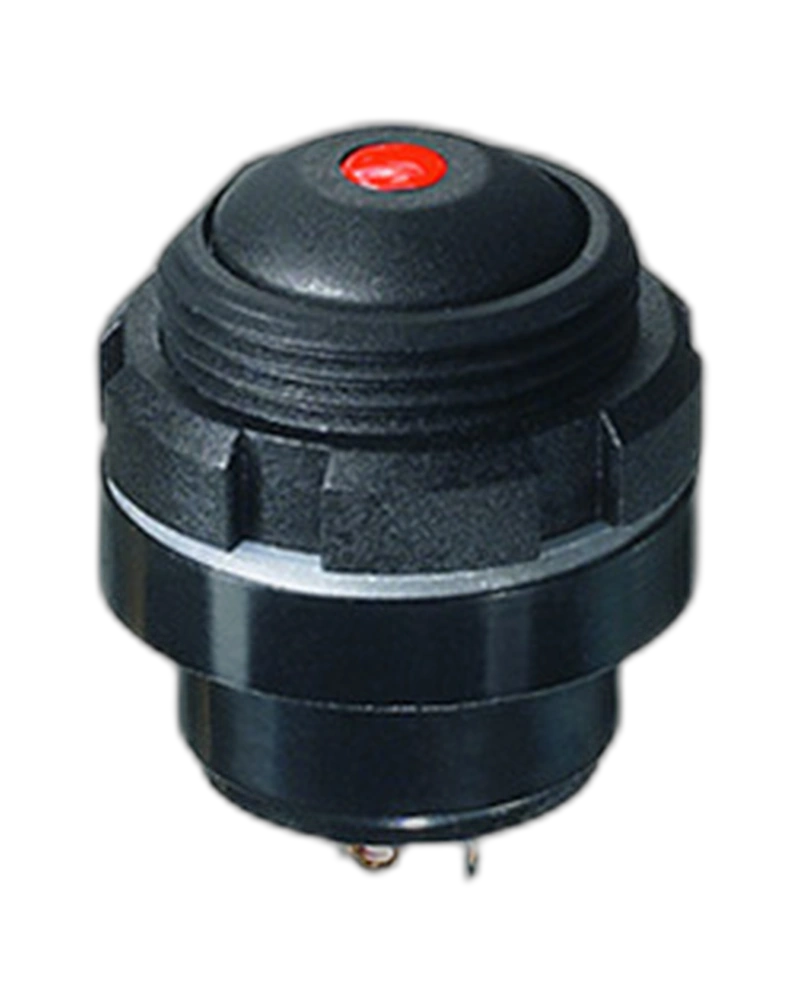

Panel Switches IZPR3S472L0W

The APEM Panel Switches IZPR3S472L0W is a Switches and Pushbutton with documented product-specific characteristics including Electrical Functions: Normally Open (NO) Bushing Bezel: Black Standard Contact Materials: Silver (Gold-Plated) Model: Thermoplastic; Dielectric strength: 1.000 Vrms 50 Hz Electrical life at full load: 500.000 cycles; sealing: IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f.

Key Features

• Electrical Functions: Normally Open (NO) Bushing Bezel: Black Standard Contact Materials: Silver (Gold-Plated) Model: Thermoplastic
• Dielectric strength: 1.000 Vrms 50 Hz Electrical life at full load: 500.000 cycles
• sealing: IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f
• Operating temperature: -40°C to +85°C Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f
• Panel thickness: 3 mm (.118) max.
• Total travel: 1,8 mm (.070) +/- 0,3 mm Typical
• operating force: 6 N +/- 2 N
• Torque: 0,7 Nm max. applied to nut Soldering: 320°C max. for 3 sec. Soldering: 320°C max. for 3 sec. Rear mounting for easier installation Fixed or variable panel thickness Screw version available up to 4 A Sealed to IP67 Illu
• terminals: 4A 48VDC Electrical life at full load: 500.000 cycles
• Initial contact resistance: 100 mΩ max.
• Insulation resistance: 1 GΩ min. at 500VDC
• Max. current/voltage rating with resistive load: - Gold plated silver contacts (code 4): 200mA 48VDC- Silver contacts (code 2) - screw
• Rear mounting for easier installation Momentary models Screw version available up to 4A Sealed to IP67 Illuminated or non-illuminated Flat actuator for optional marking
• Rear mounting for easier installation Fixed or variable panel thickness Screw version available up to 4 A Sealed to IP67 Illuminated or non-illuminated
• Fixed or variable panel thickness Screw version available up to 4 A Sealed to IP67 Illuminated or non-illuminated
• Screw version available up to 4 A Sealed to IP67 Illuminated or non-illuminated
• Sealed to IP67 Illuminated or non-illuminated
• Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_IZ_plastic_mom 16/08/2024
• LED Color: White,Actuator Colors:White,Bushing Bezel:Black Standard,Contact Materials:Silver (Gold-Plated)
• Mounting: Solder Lug
• Illuminated or non-illuminated
