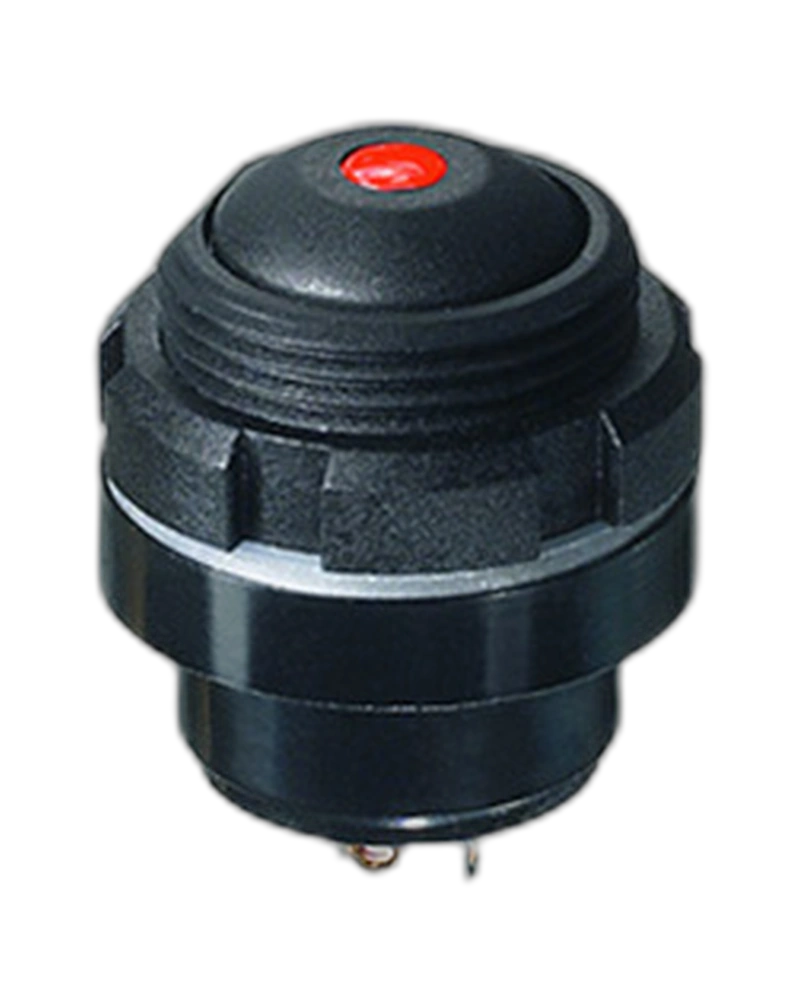

The APEM Panel Switches IZPR3P462 is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 1.000 Vrms 50 Hz Electrical life at full load : 500.000 cycles; sealing: IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f; Operating temperature: -40°C to +85°C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f.
| Feature | Specification |
|---|---|
| Force | 2 N |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz Electrical life at full load : 500.000 cycles |
| sealing | IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f |
| Operating temperature | -40°C to +85°C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 1,8 mm (.070) +/- 0,3 mm Typical |
| operating force | 6 N +/- 2 N |
| terminals | 4A 48VDC Electrical life at full load : 500.000 cycles |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - Gold plated silver contacts (code 4) : 200mA 48VDC- Silver contacts (code 2) - screw |
| Electrical Functions | Normally Open (NO) |
| Mounting | Straight PC |
