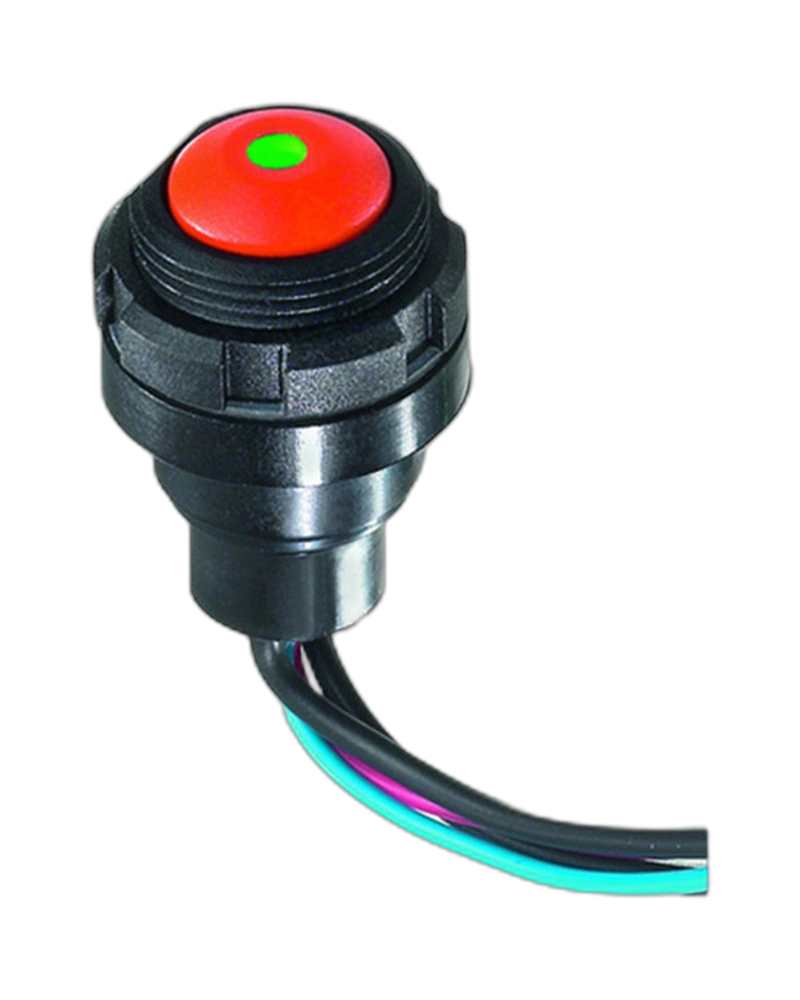

The APEM Panel Switches IZPR1S462L0S is a robust autoswitch designed for industrial applications. This switch features IP67 sealing, shock resistance to 100g, vibration resistance up to 500Hz, and operates within a temperature range of -40°C to +85°C. With a maximum current rating of 100mA at 24VDC and 200,000 cycle life, it ensures reliable performance in demanding environments.
The APEM Panel Switches IZPR1S462L0S is a high-reliability autoswitch engineered for industrial control systems. This switch combines IP67 sealing with exceptional environmental resilience, including shock resistance (100g per IEC 512-4, test 6c) and vibration resistance (10-500Hz at 10g per IEC 512-4, test 6d). It operates across a wide temperature range (-40°C to +85°C) and supports 200,000 cycles with a maximum current rating of 100mA at 24VDC. The switch features rear mounting for ease of installation, flat actuators for optional marking, and is compatible with both illuminated and non-illuminated configurations.
The IZPR1S462L0S delivers exceptional environmental protection with IP67 sealing, ensuring dust and water resistance. It withstands shock resistance of 100g (IEC 512-4, test 6c) and vibration resistance up to 500Hz at 10g (IEC 512-4, test 6d). Additionally, it passes salt spray testing (IEC 512-6, test 11f), making it suitable for harsh industrial conditions.
This switch operates within a temperature range of -40°C to +85°C and supports a maximum current of 100mA at 24VDC. It features an initial contact resistance of 100 mΩ max and dielectric strength of 1,500 Vrms between terminals, ensuring reliable electrical performance in demanding applications.
The switch has a total travel of 2.5 mm (±0.3 mm) with an operating force of 5 N (±2 N). It is designed for rear mounting to facilitate installation and includes a flat actuator for optional marking, providing flexibility in labeling and system integration.
Constructed with a 3 mm panel thickness (max), the switch uses silver contact materials (gold-plated) and a black bushing bezel. It supports soldering at 320°C for 3 seconds and is rated for 200,000 cycles with a typical life of 200,000 cycles for both low-level and mechanical operations.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Solder Lug |
The APEMPanel Switches IZPR1S462L0S is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Solder Lug |
