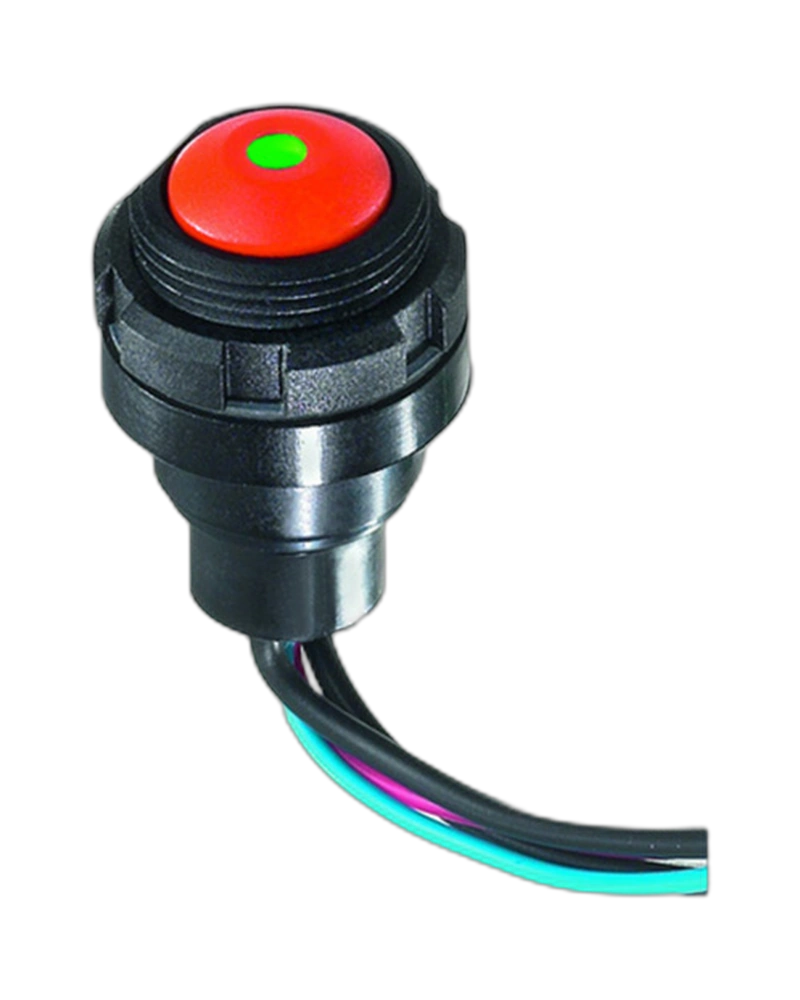

The IZPR1S422 Panel Switch features a curved actuator for ergonomic use, simple OFF-ON function, and silver gold-plated contacts for reliable performance in industrial or commercial environments. Select Quantity
| Feature | Specification |
|---|---|
| force | 5 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
