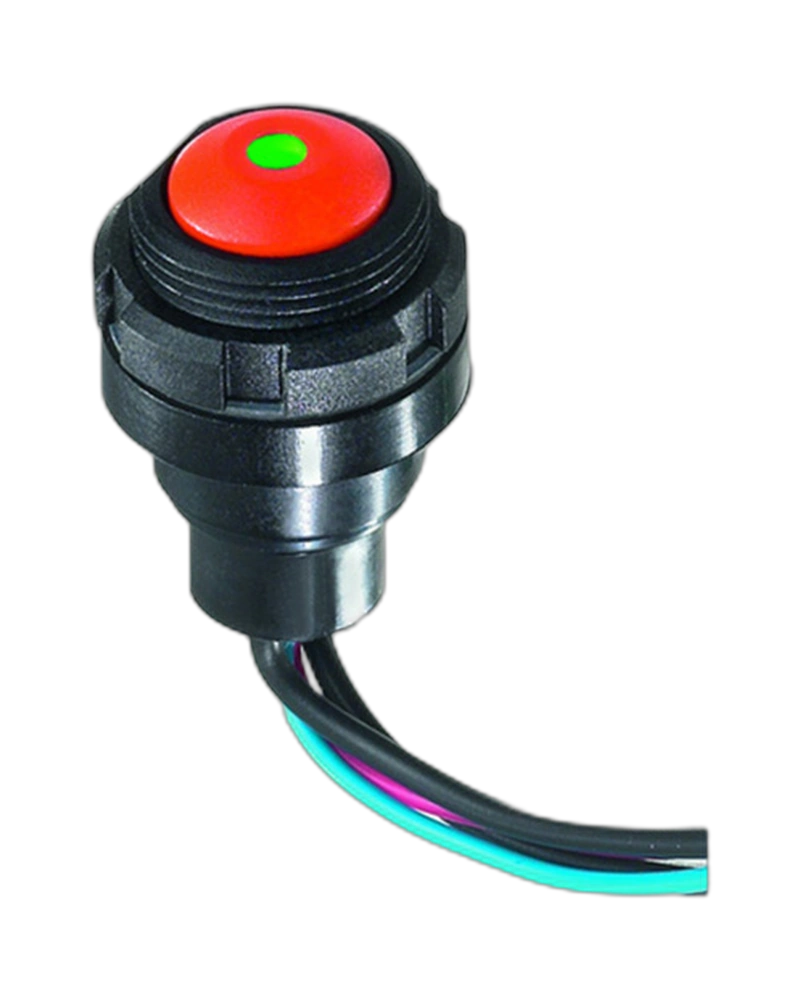

The APEM Panel Switches IZPR1F422L0S is a robust autoswitch designed for industrial applications. Featuring IP67 sealing, wide operating temperature range (-40°C to +85°C), and reliable performance with 200,000 cycles, this switch ensures durability in harsh environments. Ideal for demanding electrical systems requiring high shock and vibration resistance.
The APEM Panel Switches IZPR1F422L0S is a high-performance autoswitch engineered for industrial environments where reliability and durability are critical. With an IP67 rating for dust and water resistance, this switch maintains consistent operation across extreme temperatures (-40°C to +85°C) and withstands significant mechanical stress, including 100g shock resistance and 10-500Hz vibration resistance. Its robust construction, featuring a 3mm panel thickness and 2.5mm total travel, ensures precise actuation with minimal force (5N) and exceptional electrical performance, including a 1,500Vrms dielectric strength and 100mΩ max initial contact resistance. The switch supports both illuminated and non-illuminated operation, with optional flat actuators for marking, making it suitable for applications requiring high reliability in challenging conditions.
The IZPR1F422L0S delivers reliable electrical operation with a max current/voltage rating of 100 mA at 24 VDC for resistive loads, supporting 200,000 cycles. It features a 1,500 Vrms dielectric strength between terminals and an initial contact resistance of 100 mΩ max, ensuring stable connections even under high-stress conditions. The switch operates with a typical contact force of 5N ± 2N, providing precise actuation without excessive wear.
Engineered for extreme environments, the switch meets stringent environmental standards including IP67 sealing for dust and water resistance, shock resistance of 100g (IEC 512-4, test 6c), and vibration resistance of 10-500Hz at 10g (IEC 512-4, test 6d). It also withstands salt spray testing (IEC 512-6, test 11f), making it suitable for outdoor or marine applications where exposure to harsh conditions is common.
With a 3mm panel thickness (max), the switch offers robust mechanical stability. Its total travel of 2.5 mm (±0.3 mm) ensures precise actuation, while the 5N operating force and 200,000 cycle life guarantee long-term reliability. The rear mounting design simplifies installation, and the flat actuator allows for optional marking, enhancing usability in complex systems.
This switch is ideal for industrial control panels, machinery, and automation systems where high durability and environmental resilience are essential. Its wide operating temperature range (-40°C to +85°C) and resistance to shock and vibration make it suitable for use in automotive, manufacturing, and outdoor applications without compromising performance.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Flying Leads |
The APEMPanel Switches IZPR1F422L0S is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Flying Leads |
