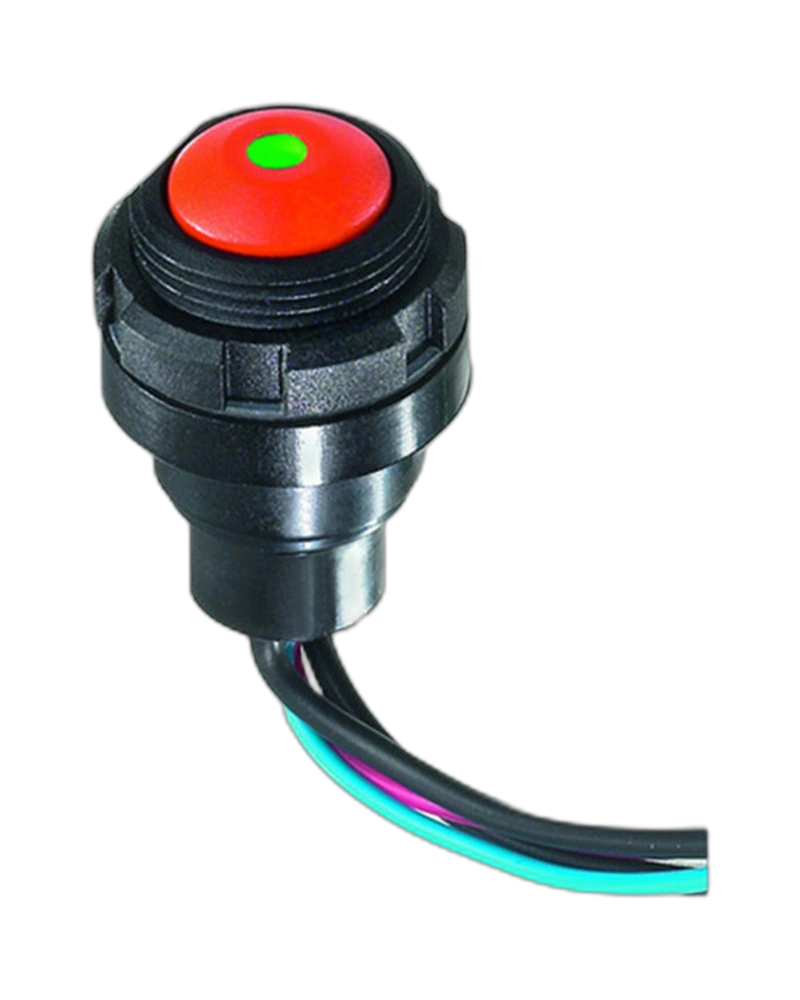

The APEM Panel Switches IZPR1F422 is a robust autoswitch designed for industrial applications. With an IP67 sealing rating, operating temperature range of -40°C to +85°C, and a total travel of 2.5 mm, this switch ensures reliable performance in harsh environments. Ideal for demanding electrical systems requiring high durability and precise operation.
The APEM Panel Switches IZPR1F422 is a high-reliability autoswitch engineered for industrial environments where durability and precision are critical. This switch delivers exceptional performance through its IP67 sealing, wide operating temperature range (-40°C to +85°C), and robust mechanical specifications including shock and vibration resistance. Its rear mounting design simplifies installation while maintaining a flat actuator for optional marking, making it suitable for applications requiring high cycle life and environmental resilience.
The IZPR1F422 features IP67 sealing according to IEC 60529, ensuring protection against dust, water, and corrosive environments. It also meets stringent shock resistance (100 g, IEC 512-4, test 6c) and vibration resistance (10-500 Hz, 10 g, IEC 512-4, test 6d) standards, making it suitable for industrial settings with mechanical stress. Salt spray resistance (IEC 512-6, test 11f) further enhances its durability in challenging conditions.
With a dielectric strength of 1,500 Vrms between terminals and an initial contact resistance of 100 mΩ max., the switch ensures reliable electrical connections even under high-voltage conditions. It supports a maximum current/voltage rating of 100 mA at 24 VDC for resistive loads, with 200,000 operational cycles, ideal for applications requiring long-term stability.
The switch has a total travel of 2.5 mm (±0.3 mm) and requires an operating force of 5 N (±2 N), ensuring precise actuation without excessive effort. Its rear mounting design simplifies installation, while the flat actuator allows for optional marking to enhance user identification in complex systems.
Designed for industrial automation and control systems, the IZPR1F422’s wide temperature range (-40°C to +85°C) and robust environmental ratings make it suitable for use in extreme conditions. Its IP67 sealing and high cycle life ensure reliable operation in applications such as machinery control panels, industrial equipment, and environments with high mechanical stress.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Flying Leads |
