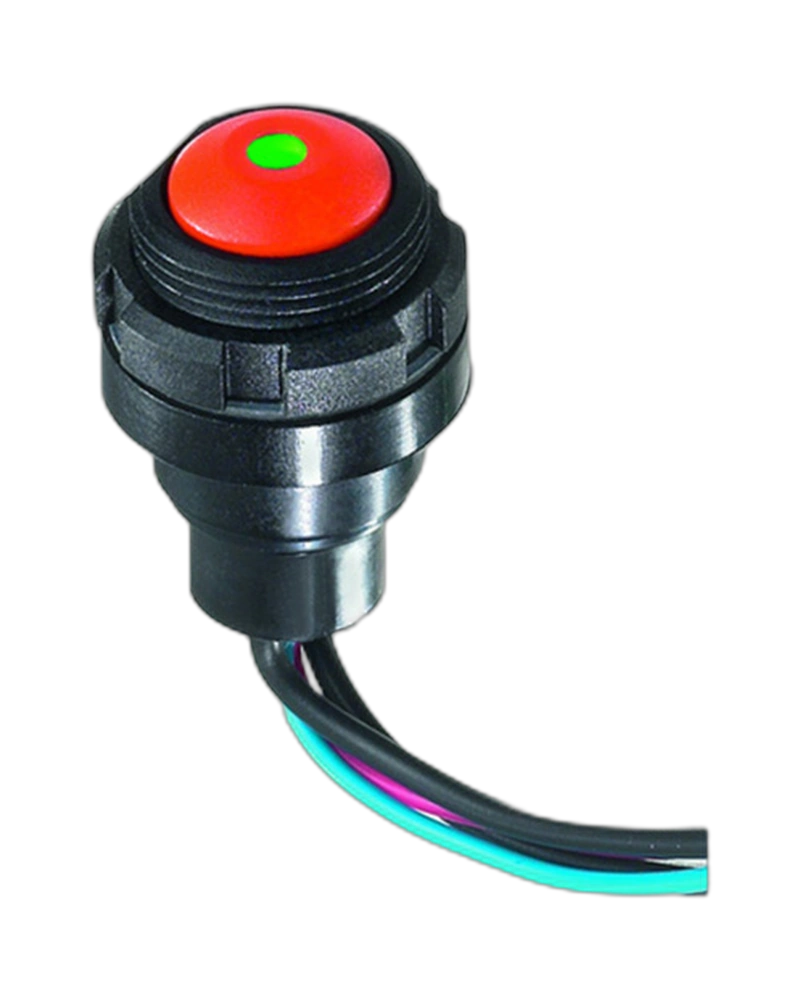

The APEM Panel Switches IZPP1F422L0Y is a robust autoswitch designed for industrial applications. With a 3 mm panel thickness, 2.5 mm total travel, and 5 N operating force, this switch delivers reliable performance in demanding environments. Its IP67 sealing, shock resistance, and vibration tolerance ensure durability for harsh conditions.
The APEM Panel Switches IZPP1F422L0Y is a high-reliability autoswitch engineered for industrial control systems. This switch features a 3 mm panel thickness, 2.5 mm total travel (±0.3 mm), and 5 N operating force, providing precise mechanical operation with minimal wear. Its IP67 sealing ensures protection against dust, water, and corrosive environments, while shock resistance (100 g) and vibration tolerance (10-500 Hz at 10 g) make it suitable for rugged installations. The switch supports 200,000 cycles with a 100 mA 24 VDC current rating for resistive loads, and its rear mounting design simplifies installation without compromising performance.
IP67 sealed to IEC 60529. Shock resistance: 100 g (IEC 512-4, test 6c). Vibration resistance: 10-500 Hz at 10 g (IEC 512-4, test 6d). Salt spray resistance: IEC 512-6, test 11f. Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F).
Rear mounting for easier installation. Fixed or variable panel thickness. Flying leads for connection. Flat actuator for optional marking. Illuminated or non-illuminated options available.
Electrical functions: ON/OFF. Max current/voltage: 100 mA 24 VDC with resistive load (200,000 cycles). Initial contact resistance: 100 mΩ max. Torque: 0.7 Nm max. applied to nut. Soldering: 320 °C max. for 3 seconds.
| Feature | Specification |
|---|---|
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Flying Leads |
The APEMPanel Switches IZPP1F422L0Y is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0.3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Max. current/voltage rating with resistive load | 100 mA 24 VDC - 200,000 cycles |
| Electrical Functions | ON OFF |
| Mounting | Flying Leads |
