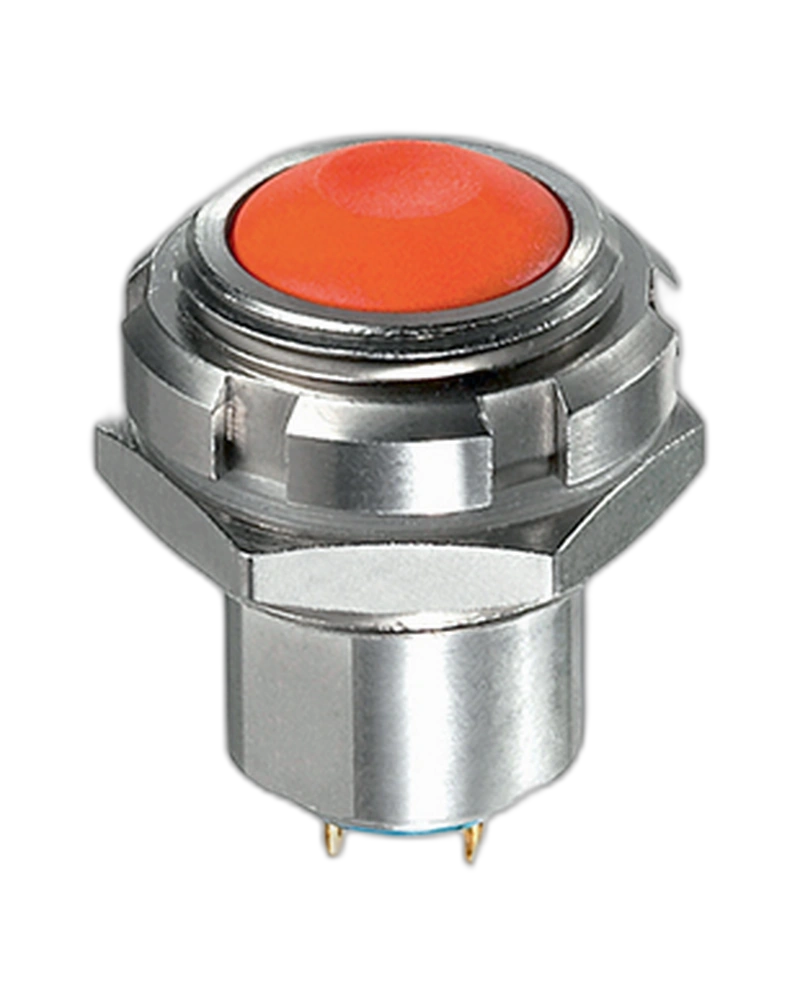

Panel Switches IZNR3S42NL0S

The APEM Panel Switches IZNR3S42NL0S is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 1.000 Vrms 50 Hz Electrical life at full load : 500.000 cycles; sealing: IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f; Operating temperature: -40°C to +85°C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f.

Key Features

• Dielectric strength: 1.000 Vrms 50 Hz Electrical life at full load : 500.000 cycles
• sealing: IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f
• Operating temperature: -40°C to +85°C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f
• Panel thickness: - IZM : 3 mm (.118) max.- IZN : 4 mm (.157) max.
• Total travel: 1,8 mm (.070) +/- 0,3 mm Typical
• Torque: IZN : 1 Nm max.IZM : 0,7 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Soldering : 320°C max. for 3 sec. Rear mounting for easier installation Fixed or variable panel thickness Sealed to IP67 Illuminated or no
• terminals: 4A 48VDC Electrical life at full load : 500.000 cycles
• Initial contact resistance: 100 mΩ max.
• Insulation resistance: 1 GΩ min. at 500VDC
• operating force: 6N +/- 2N Low level or mechanical life : 1.000.000 cycles
• Max. current/voltage rating with resistive load: - Gold plated silver contacts (code 4) : 200mA 48VDC- Silver contacts (code 2) - screw
• Rear mounting for easier installation Fixed or variable panel thickness Sealed to IP67 Illuminated or non-illuminated Flat actuator for optional marking
• Fixed or variable panel thickness Sealed to IP67 Illuminated or non-illuminated Flat actuator for optional marking
• Sealed to IP67 Illuminated or non-illuminated Flat actuator for optional marking
• Finish: Nickel-Plated,Contact Materials:Silver (Gold-Plated),Model:Metal Fixed Panel Thickness
• Electrical Functions: Normally Open (NO)
• Illuminated or non-illuminated Flat actuator for optional marking
• Flat actuator for optional marking
