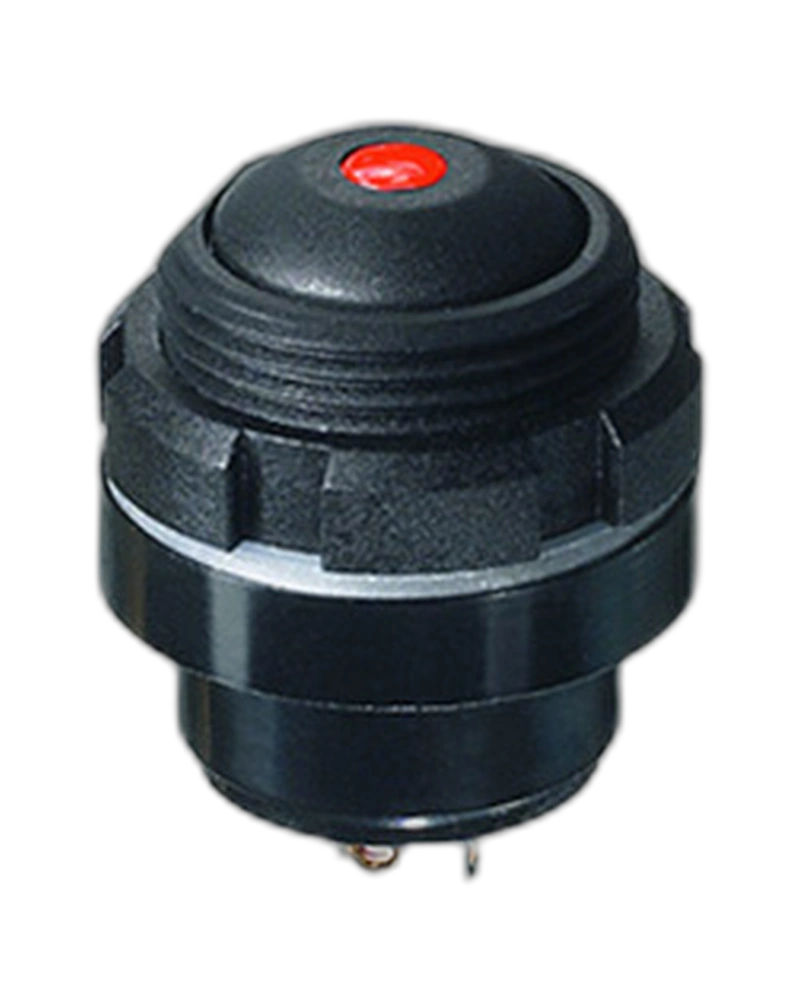

IZ - plastic - momentary The IZ series is a rear mounted pushbutton, available with a polyamide or a metal case. This product has been designed to reduce the assembly cost in 2 application types: wave soldering and when using a connector. The IZ series allows flush panel mounting and makes dismounting easier.
| Feature | Specification |
|---|---|
| force | 6 N |
| LED Color | Non-Illuminated |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz Electrical life at full load : 500.000 cycles |
| sealing | IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f |
| Operating temperature | -40°C to +85°C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 1,8 mm (.070) +/- 0,3 mm Typical |
| operating force | 6 N +/- 2 N |
| terminals | 4A 48VDC Electrical life at full load : 500.000 cycles |
| Insulation resistance | 1 GΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - Gold plated silver contacts (code 4) : 200mA 48VDC- Silver contacts (code 2) - screw |
| Electrical Functions | Normally Open (NO) |
| Mounting | Quick Connect Non-Illuminated |
