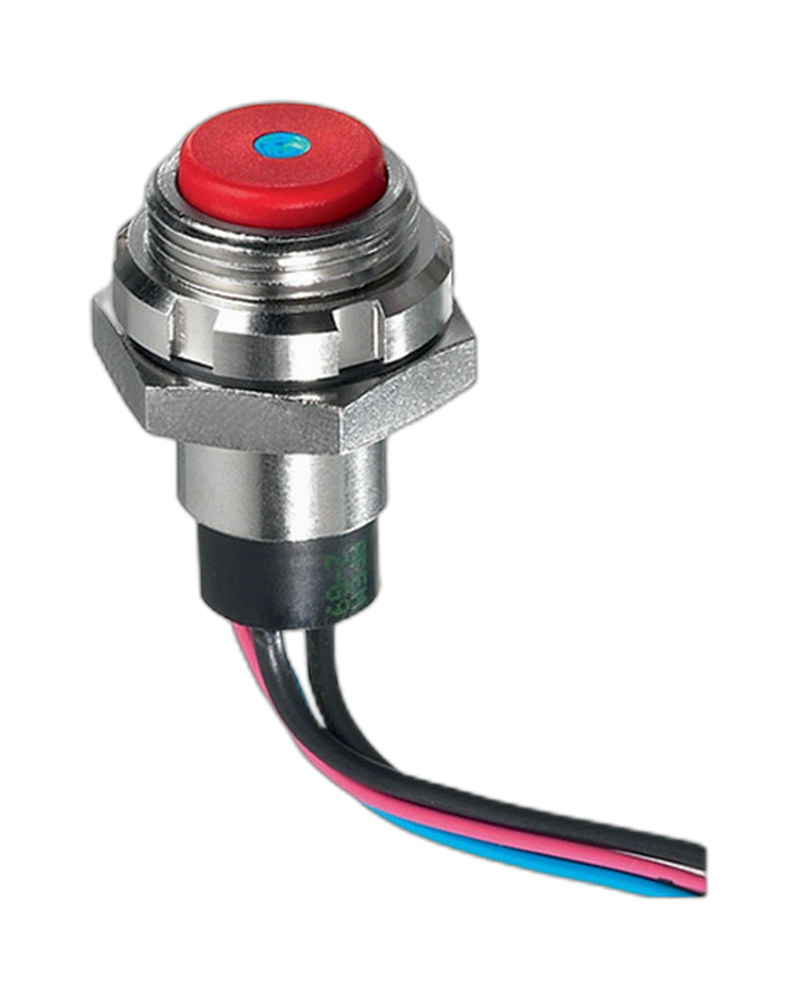

IZ - metal - latching IZNR3F23NL0W The IZNR3F23NL0W Panel Switch features a round curved actuator for ergonomic use, normally open function, and durable silver screw terminal contacts for reliable operation. Select Quantity
| Feature | Specification |
|---|---|
| force | 6N |
| Super red (L0S) | 20 mA 1.95 V 1.95 V |
| Yellow (L0Y) | 20 mA 2 V 2.05 V |
| Green (L0G) | 20 mA 2.1 V 2.5 V |
| Blue (L0B) | 20 mA 3.2 V 4 V |
| 0.50x0.60 (.019x.023) | 3.20 (.125) |
| Ø12.00 (.472DIA) | 20.00 (.787) 2.00 (.078) 4.00 (.157) 8.70 (.342) 14.00 (.551) 3.20 (.125) |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz Electrical life at full load : 500.000 cycles |
| sealing | IP67 according to IEC 60529 Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f |
| Operating temperature | -40°C to +85°C Shock resistance : 100 g according to IEC 512-4, test 6c Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray : IEC 512-6, test 11f |
| Panel thickness | - IZM : 3 mm (.118) max.- IZN : 4 mm (.157) max. |
| Total travel | 1,8 mm (.070) +/- 0,3 mm Typical |
| Torque | IZN : 1 Nm max.IZM : 0,7 Nm max. applied to nut Soldering : 320°C max. for 3 sec. Low level or mechanical life : 1.000.000 cycles |
| terminals | 4A 48VDC Electrical life at full load : 500.000 cycles |
| Insulation resistance | 1 GΩ min. at 500VDC |
| operating force | 6N +/- 2N Low level or mechanical life : 1.000.000 cycles |
| Max. current/voltage rating with resistive load | - Gold plated silver contacts (code 4) : 200mA 48VDC- Silver contacts (code 2) - screw |
| Electrical Functions | Normally Open (NO) |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Super red (L0S) | 20 mA 1.95 V 1.95 V |
| Yellow (L0Y) | 20 mA 2 V 2.05 V |
| Green (L0G) | 20 mA 2.1 V 2.5 V |
| Blue (L0B) | 20 mA 3.2 V 4 V |
