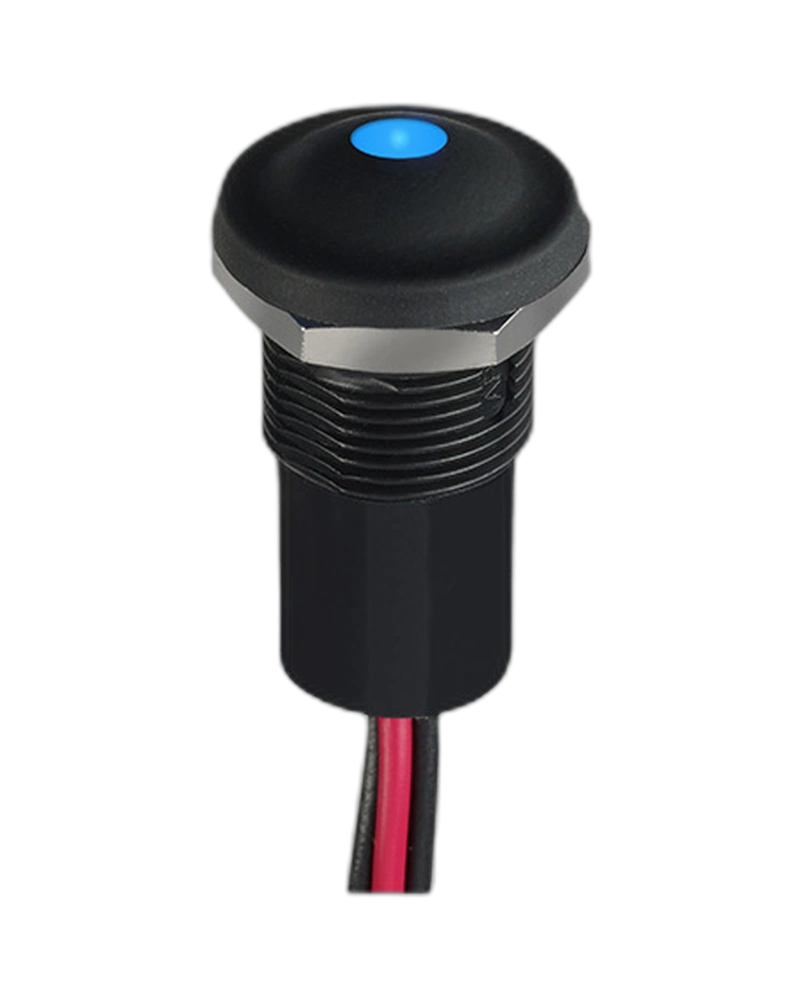

The APEM Panel Switches IXP5W12GRXKH is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1 GΩ min. at 500 VDC; sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC; Panel thickness: 1.5 to 6 mm.
| Feature | Specification |
|---|---|
| Force | 8.5 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| operating force | - function 3 (NO) 7 N ± 2 N- function 5 (NC/NO) 8.5 N ± 2 N Low level/mech. life : 1,000,000 cycles |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. Soldering : 320 °C (608 °F) max. for 3 sec. Backlighted marking in a compact case Strong tactile feedback NO or NC/NO High sealing level, no |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Operating and |
| storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
| Max. current/voltage rating with resistive load | - Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles- Silver contact (1): 2 A 28 VDC, 100,000 cycles |
| Electrical Functions | Combined (NC/NO) |
