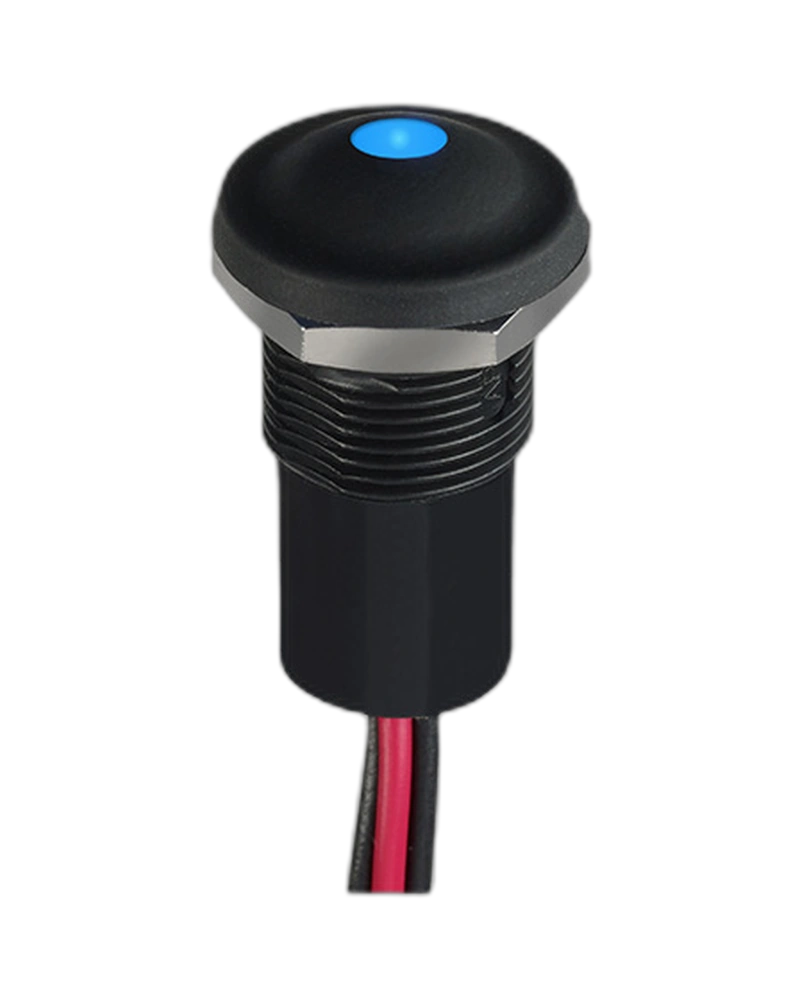

The APEM Panel Switches IXP5S02M is a Switches and Pushbutton with documented product-specific characteristics including Sealing: IP67; Force: 8.5 N; Insulation resistance: 1 GΩ min. at 500 VDC.
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Force | 8.5 N |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. |
| Initial contact resistance | 100 mΩ max. |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms |
| Operating and storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms |
| Operating and storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
