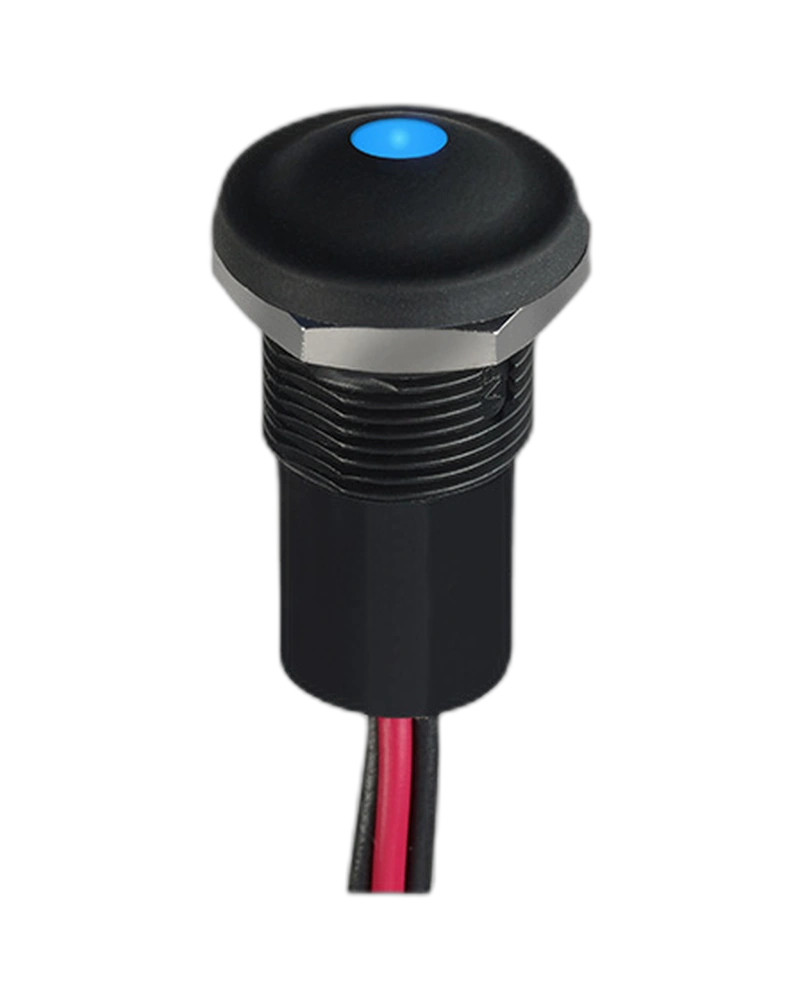

The APEM Panel Switches IXP3W12M is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1 GΩ min. at 500 VDC; sealing: IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC; Panel thickness: 1.5 to 6 mm.
The Panel Switches IXP3W12M is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| operating force | - function 3 (NO) 7 N ± 2 N- function 5 (NC/NO) 8.5 N ± 2 N Low level/mech. life : 1,000,000 cycles |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. Soldering : 320 °C (608 °F) max. for 3 sec. Backlighted marking in a compact case Strong tactile feedback NO or NC/NO High sealing level, no |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Operating and |
| storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
| Max. current/voltage rating with resistive load | - Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles- Silver contact (1): 2 A 28 VDC, 100,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Operating and storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
The APEMPanel Switches IXP3W12M is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| operating force | - function 3 (NO) 7 N ± 2 N- function 5 (NC/NO) 8.5 N ± 2 N Low level/mech. life : 1,000,000 cycles |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. Soldering : 320 °C (608 °F) max. for 3 sec. Backlighted marking in a compact case Strong tactile feedback NO or NC/NO High sealing level, no |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Operating and |
| storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
| Max. current/voltage rating with resistive load | - Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles- Silver contact (1): 2 A 28 VDC, 100,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Operating and storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
