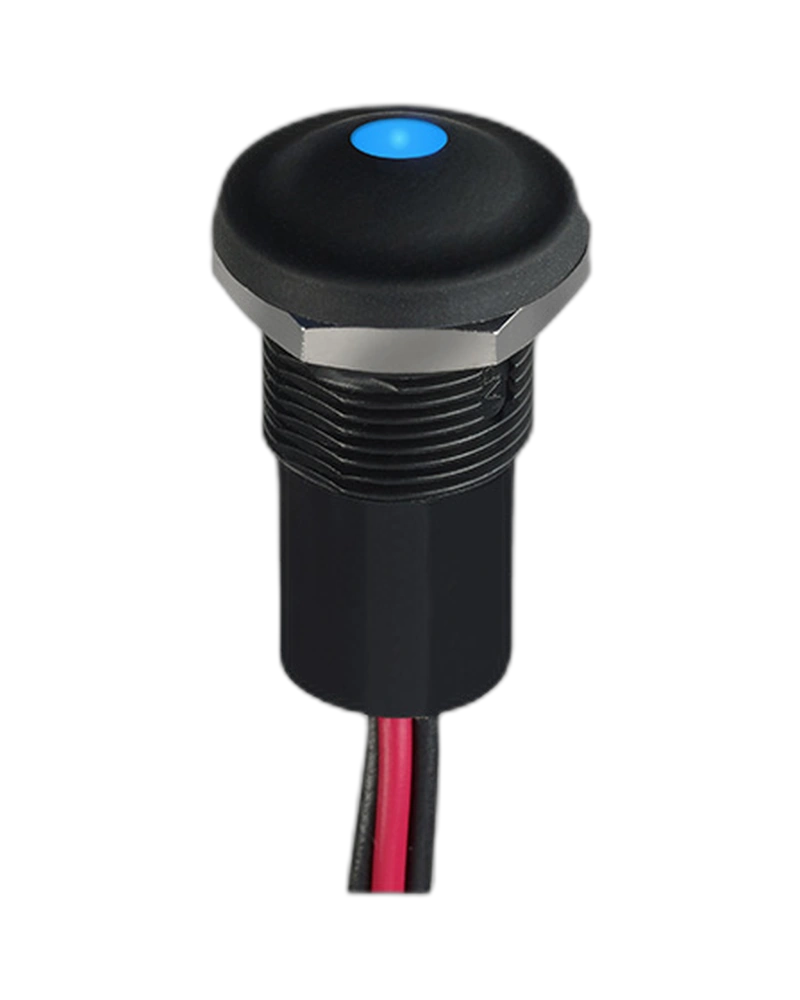

The APEM Panel Switches IXP3W02BRXN9 is a robust, high-performance autoswitch designed for demanding industrial environments. Featuring IP67/IP69K sealing, strong tactile feedback, and gold-plated contacts, this switch delivers reliable operation with 1,000,000 cycles for NO functions and 28 VDC/100 mA ratings. Ideal for applications requiring high durability and precise control in harsh conditions.
The APEM Panel Switches IXP3W02BRXN9 is a high-reliability autoswitch engineered for industrial use in environments with extreme conditions. With a compact design, this switch provides exceptional durability through its IP67/IP69K sealing, ensuring protection against dust, water, and high-impact shocks. The gold-plated contacts and strong tactile feedback ensure precise operation and long service life, while the 1,000,000-cycle life for NO functions and 28 VDC/100 mA ratings make it suitable for critical applications where reliability is paramount.
The IXP3W02BRXN9 operates with a maximum current of 100 mA at 28 VDC for gold-plated contacts, supporting 1,000,000 cycles. Silver contacts handle up to 2 A at 28 VDC with 100,000 cycles. Initial contact resistance is 100 mΩ max, and dielectric strength reaches 1,500 Vrms, ensuring reliable electrical performance in demanding applications.
Engineered for extreme conditions, this switch meets IP67 (dust and water resistance) and IP69K (high-pressure cleaning) standards. It withstands shocks of 100 g and salt spray tests, maintaining functionality in harsh industrial settings without compromising performance.
With a total travel of 2 mm (±0.3 mm), the switch provides precise actuation. The operating force for NO functions is 7 N (±2 N), and for NC/NO functions, it is 8.5 N (±2 N). The compact design ensures no space between the actuator and bushing, enhancing durability and sealing.
The switch features a mechanical life of 1,000,000 cycles for NO functions, ensuring long-term reliability. Its robust construction, including gold-plated contacts and strong tactile feedback, minimizes wear and maintains consistent performance even under heavy usage.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| operating force | - function 3 (NO) 7 N ± 2 N- function 5 (NC/NO) 8.5 N ± 2 N Low level/mech. life : 1,000,000 cycles |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. Soldering : 320 °C (608 °F) max. for 3 sec. Backlighted marking in a compact case Strong tactile feedback NO or NC/NO High sealing level, no |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Operating and |
| storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
| Max. current/voltage rating with resistive load | - Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles- Silver contact (1): 2 A 28 VDC, 100,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Operating and storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
The APEMPanel Switches IXP3W02BRXN9 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529, IP69K according to DIN 40050-9 Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC 512-6, test 11f Shock resistance: 100 g according to IEC 512-4, test 6c Salt spray: IEC |
| Panel thickness | 1.5 to 6 mm |
| Total travel | 2 mm (.078) ± 0.3 mm Typical |
| operating force | - function 3 (NO) 7 N ± 2 N- function 5 (NC/NO) 8.5 N ± 2 N Low level/mech. life : 1,000,000 cycles |
| Torque | 0.5 Nm (0.6 Nm max.) applied to nut Soldering : 320 °C (608 °F) max. for 3 sec. Soldering : 320 °C (608 °F) max. for 3 sec. Backlighted marking in a compact case Strong tactile feedback NO or NC/NO High sealing level, no |
| Dielectric strength | 1,500 Vrms Contact bounce : 10 ms Contact bounce : 10 ms Operating and |
| storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
| Max. current/voltage rating with resistive load | - Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles- Silver contact (1): 2 A 28 VDC, 100,000 cycles |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Operating and storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Front panel |
