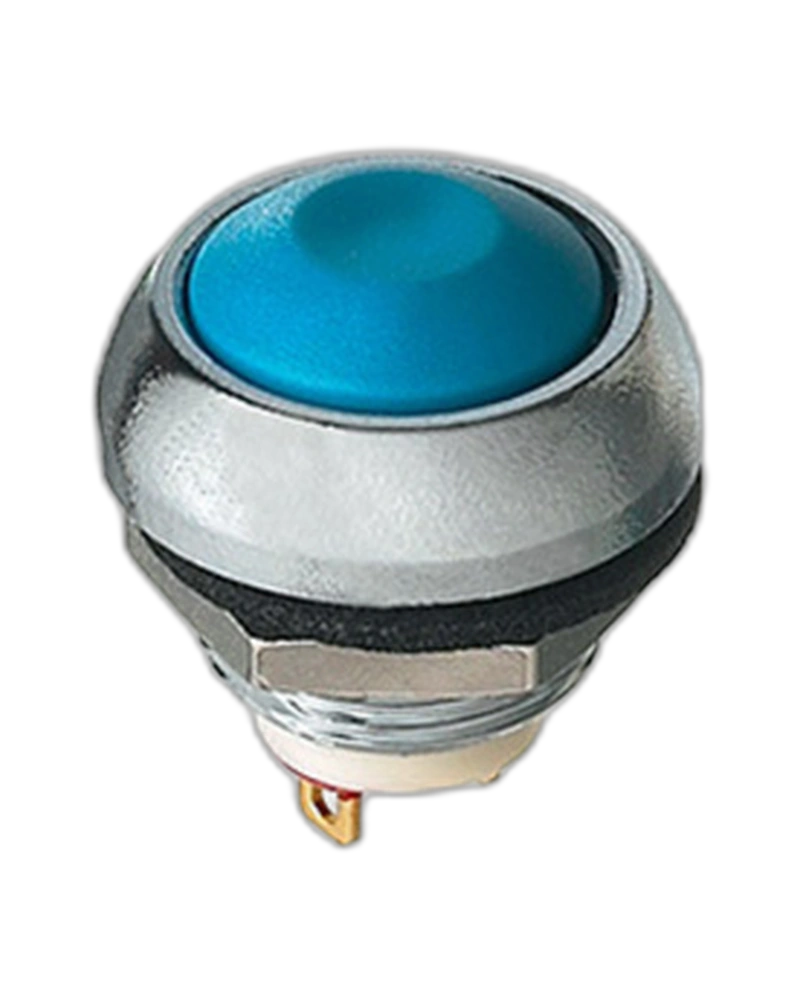

The APEM Panel Switches ISR3SAD600UL is a robust, sealed autoswitch designed for demanding industrial environments. With IP67 sealing, wide temperature operation from -40°C to +85°C, and reliable electrical performance including 1 GΩ insulation resistance at 500 VDC, this switch ensures durability in harsh conditions. Ideal for applications requiring high electrical life and shock/vibration resistance.
The APEM Panel Switches ISR3SAD600UL is a high-performance, sealed autoswitch engineered for extreme industrial environments. Featuring IP67 protection against dust and water immersion, this switch maintains reliable operation across a wide temperature range of -40°C to +85°C (-40°F to 185°F). Its robust construction includes shock resistance to 100g and vibration tolerance up to 10-500 Hz at 10g, ensuring resilience in demanding applications. With electrical life exceeding 500,000 cycles and a maximum current rating of 400 mA at 32 VAC, the ISR3SAD600UL delivers precise control while meeting stringent industrial standards.
The ISR3SAD600UL delivers reliable electrical performance with a maximum current rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features an initial contact resistance of 50 mΩ max and 1 GΩ insulation resistance at 500 VDC, ensuring stable operation and minimal energy loss in critical circuits.
Engineered for extreme conditions, this switch withstands shock resistance up to 100g (IEC 512-4, test 6c) and vibration resistance from 10-500 Hz at 10g (IEC 512-4, test 6d). It also passes salt spray testing (IEC 512-6, test 11f) and operates reliably in temperatures ranging from -40°C to +85°C (-40°F to 185°F).
With electrical life exceeding 500,000 cycles at full load and a mechanical life of 1,000,000 cycles, the ISR3SAD600UL ensures long-term reliability. Its compact design (1.7 mm total travel) and robust construction support repeated use without degradation in performance.
The switch is sealed to IP67 standard, providing protection against dust and water immersion. Additional silicone boot sealing prevents frost and abrasion from sand, making it suitable for harsh environments like outdoor installations or industrial settings with high particulate exposure.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches ISR3SAD600UL is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
