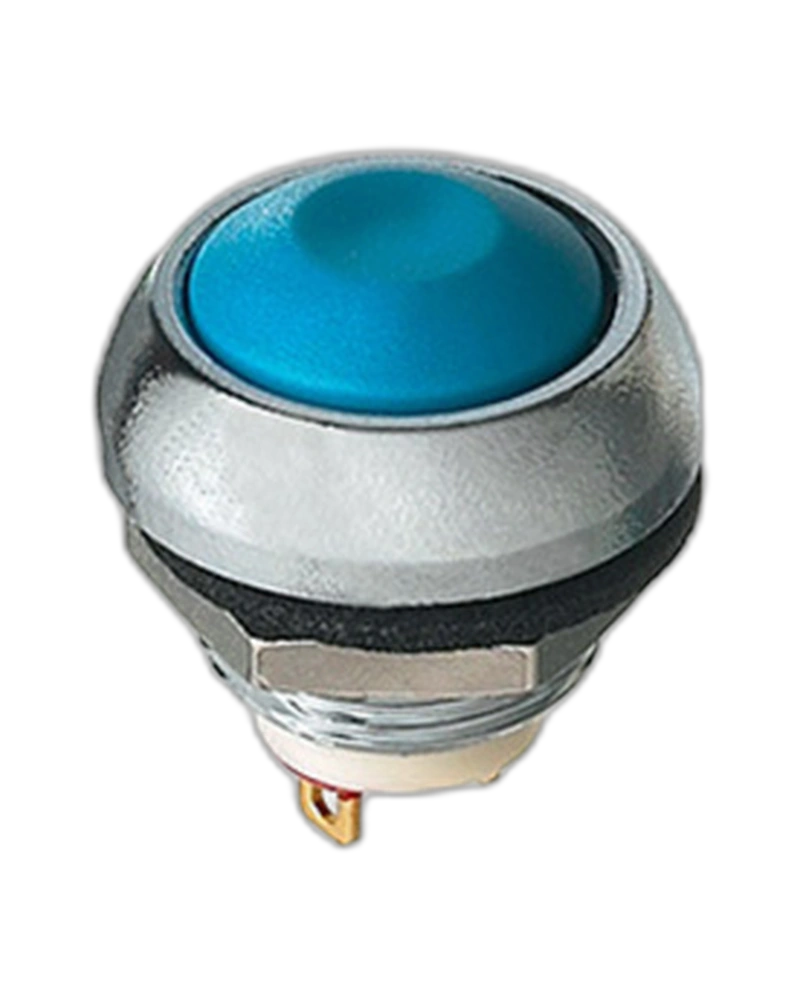

The APEM Panel Switches ISR3SAD600104 is a robust, sealed autoswitch designed for industrial applications. With IP67 sealing, 1,000 Vrms dielectric strength, and 500,000 electrical life cycles, this compact switch ensures reliable operation in harsh environments. Ideal for machinery and equipment requiring high durability and tactile feedback.
The APEM Panel Switches ISR3SAD600104 is a high-performance, sealed autoswitch engineered for demanding industrial environments. This compact switch delivers exceptional reliability with its IP67 sealing, 1,000 Vrms dielectric strength, and 500,000 electrical life cycles at full load. Designed for applications requiring robust performance in extreme conditions, the ISR3SAD600104 combines tactile feedback, low contact resistance (50 mΩ max), and a wide operating temperature range (-40 °C to +85 °C) to ensure consistent functionality in machinery, automation systems, and industrial equipment.
The ISR3SAD600104 operates within a max. current/voltage rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. It features a low initial contact resistance of 50 mΩ max, ensuring minimal voltage drop during operation. The switch is designed for normally open (NO) electrical functions, providing reliable circuit control in industrial systems.
Engineered for extreme conditions, the ISR3SAD600104 meets stringent environmental standards including IP67 sealing for dust and water resistance, shock resistance of 100 g (IEC 512-4, test 6c), and vibration resistance from 10-500 Hz at 10 g (IEC 512-4, test 6d). It also withstands salt spray tests (IEC 512-6, test 11f) and operates across a wide temperature range of -40 °C to +85 °C.
With a total travel of 1.7 mm (±0.3 mm) and an operating force of 4 N (±3 N), the switch provides precise mechanical action. The compact design (panel thickness: 1.5 mm min. to 4 mm max.) ensures space efficiency, while the tactile feedback feature enhances user experience without compromising reliability.
The ISR3SAD600104 delivers 500,000 electrical life cycles at full load, ensuring long-term performance in high-demand applications. Its robust construction, including threaded bushing models and soldering capability up to 300 °C for 3 seconds, supports extended service life in industrial settings.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
