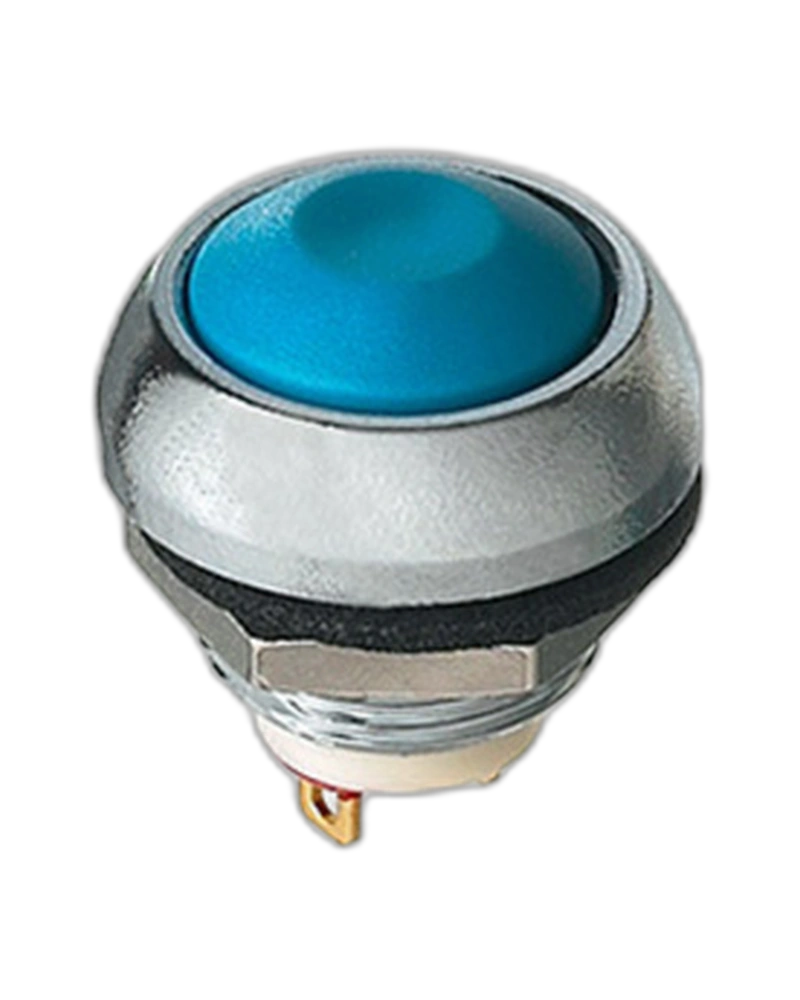

ISR3SAD600 ISR3SAD600 Panel Switch features a sleek round actuator, normally open function, and silver gold-plated contacts for superior conductivity and durability in various applications. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| Initial contact resistance | 50 mΩ max. |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| force | 4 N |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
