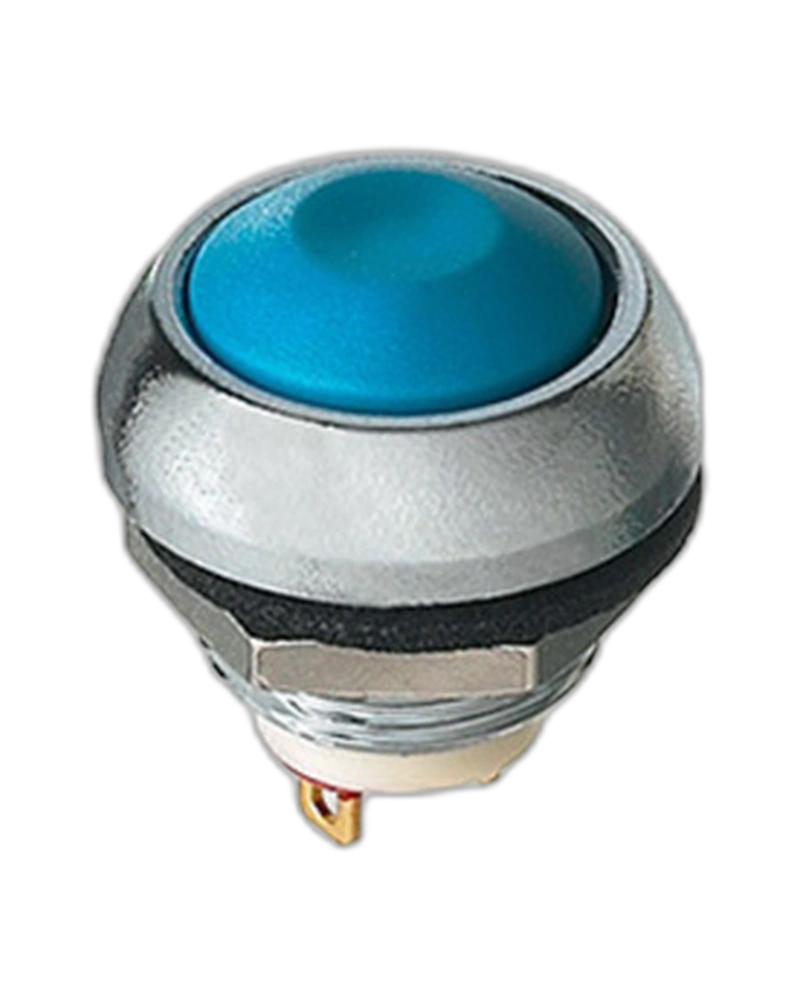

ISR3SAD200 Sleek ISR3SAD200 Panel Switch features a curved design, various actuator types, normally open function, and durable gold-plated contacts for reliable performance. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| Force | 2 N |
| Initial contact resistance | 50 mΩ max. |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
