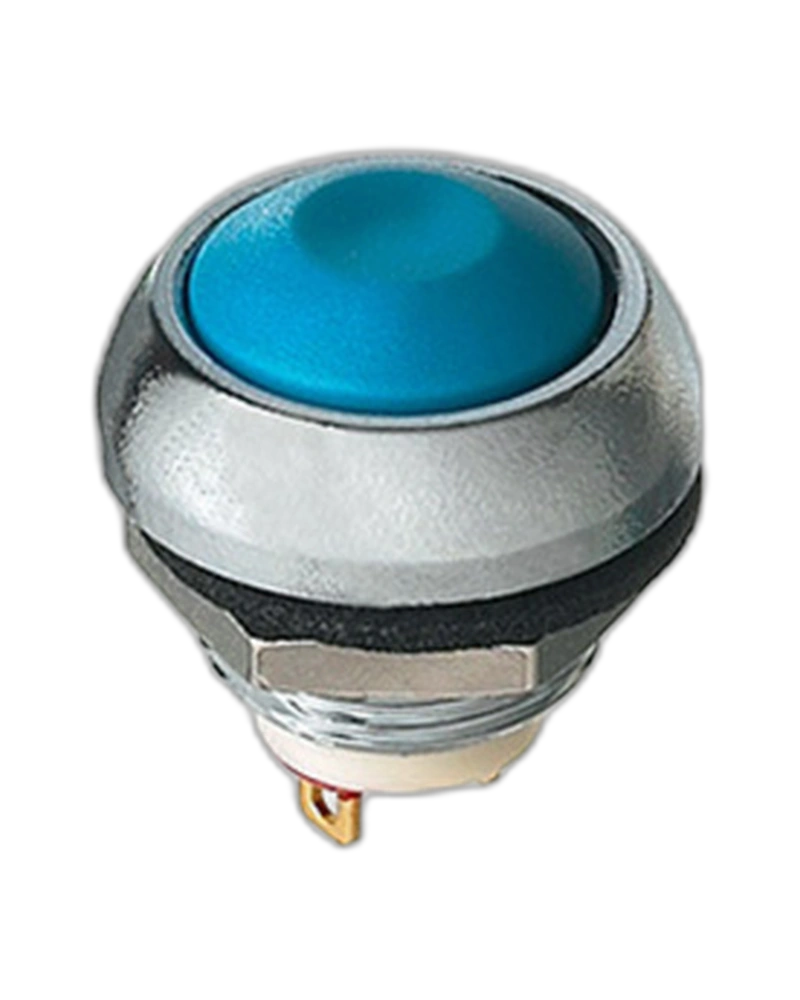

The APEM Panel Switches ISR3SAD100104UL is a robust, sealed autoswitch designed for demanding industrial environments. This compact switch features tactile feedback, IP67 sealing, and operates within a wide temperature range of -40°C to +85°C. With an electrical life of 500,000 cycles and a max current rating of 400 mA at 32 VAC, it ensures reliable performance in harsh conditions.
The APEM Panel Switches ISR3SAD100104UL is a high-reliability, compact autoswitch engineered for industrial applications requiring durability and environmental resilience. This switch delivers precise tactile feedback, IP67-rated sealing to protect against dust and water immersion, and operates effectively across extreme temperatures from -40°C to +85°C. Its robust construction, with a minimum panel thickness of 1.5 mm and maximum travel of 1.7 mm, ensures consistent performance in demanding environments while maintaining electrical integrity with an initial contact resistance of 50 mΩ max and insulation resistance of 1 GΩ min at 500 VDC.
Engineered for extreme conditions, the ISR3SAD100104UL meets stringent environmental standards including IP67 sealing for dust and water resistance, shock resistance of 100 g (IEC 512-4, test 6c), and vibration resistance from 10-500 Hz at 10 g (IEC 512-4, test 6d). It also passes salt spray testing (IEC 512-6, test 11f), ensuring reliable operation in harsh industrial settings without degradation.
The switch delivers precise electrical characteristics with an initial contact resistance of 50 mΩ max and insulation resistance of 1 GΩ min at 500 VDC. It supports a max current rating of 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads, while maintaining dielectric strength of 1,000 Vrms to prevent electrical faults.
Constructed with a compact design (panel thickness: 1.5 mm min. to 4 mm max.), the switch features a total travel of 1.7 mm (±0.3 mm) and operates with a force of 4 N (±3 N). It withstands high mechanical stress with a low-level or mechanical life of 1,000,000 cycles, ensuring long-term reliability in high-traffic applications.
The ISR3SAD100104UL operates within a wide temperature range of -40°C to +85°C, making it suitable for both cold and hot industrial environments. Its threaded bushing models allow for secure installation, while the switch's electrical life of 500,000 cycles at full load ensures consistent performance over time without compromising safety or functionality.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches ISR3SAD100104UL is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
