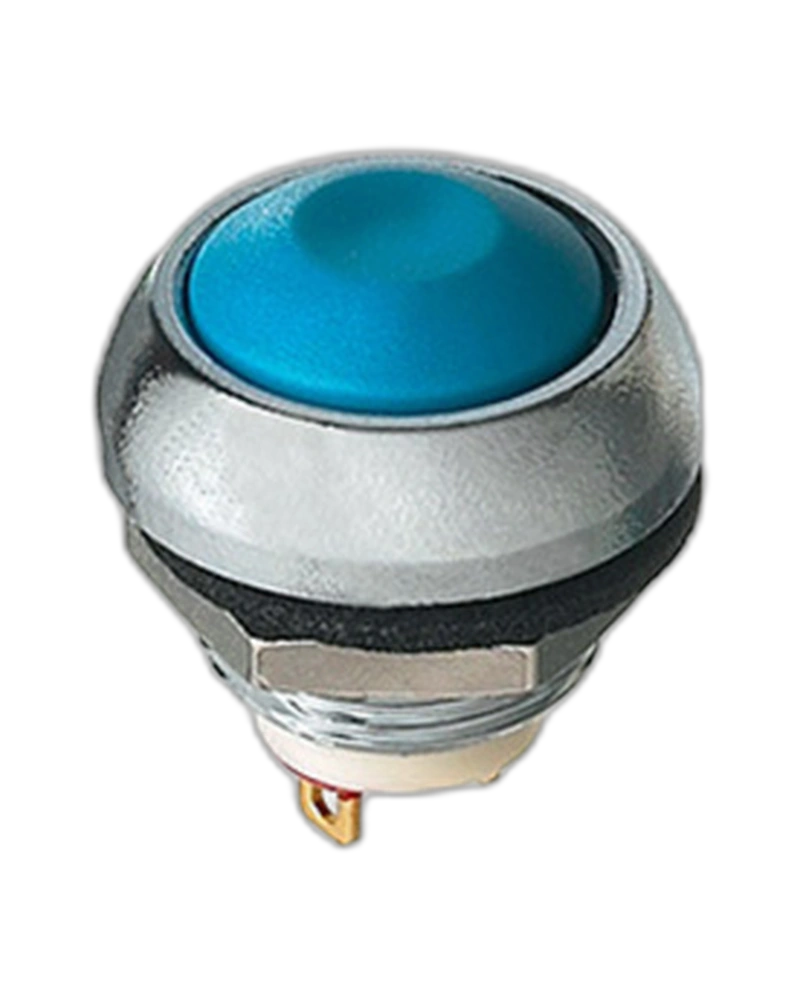

The APEM Panel Switches ISR3PAD600 is a robust, sealed switch designed for demanding industrial environments. With IP67 sealing, operation from -40°C to +85°C, and electrical life of 500,000 cycles, this compact switch ensures reliable performance in harsh conditions. Ideal for applications requiring tactile feedback and high durability.
The APEM Panel Switches ISR3PAD600 is a high-reliability, sealed switch engineered for industrial automation systems where environmental resilience and precise operation are critical. This compact switch delivers exceptional durability through its IP67-rated sealing, wide temperature range (-40°C to +85°C), and robust electrical characteristics, including 500,000 cycles of operation under full load. Its tactile feedback ensures precise user interaction, while the threaded bushing design and lightweight construction make it suitable for space-constrained installations in demanding industrial settings.
The ISR3PAD600 excels in extreme environmental conditions with IP67 sealing, ensuring protection against dust and immersion in water up to 1 meter. It withstands shock resistance of 100 g (IEC 512-4, test 6c) and vibration resistance from 10 to 500 Hz at 10 g (IEC 512-4, test 6d), making it ideal for industrial settings with high mechanical stress.
This switch supports a maximum current of 400 mA at 32 VAC and 100 mA at 48 VDC with resistive loads. The initial contact resistance is capped at 50 mΩ, ensuring minimal power loss during operation. Its electrical life of 500,000 cycles at full load guarantees long-term reliability in high-frequency applications.
Engineered for rugged use, the ISR3PAD600 features a total travel of 1.7 mm (±0.3 mm) with an operating force of 4 N (±3 N). It withstands salt spray testing (IEC 512-6, test 11f) and maintains performance in corrosive environments without degradation.
Designed for industrial automation, the ISR3PAD600 is particularly suited for applications requiring compact, sealed switches in harsh environments. Its tactile feedback ensures precise operation, while the IP67 rating and wide temperature range make it ideal for use in outdoor installations, marine environments, and high-vibration machinery.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Mounting | Straight PC |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
The APEMPanel Switches ISR3PAD600 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Mounting | Straight PC |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
