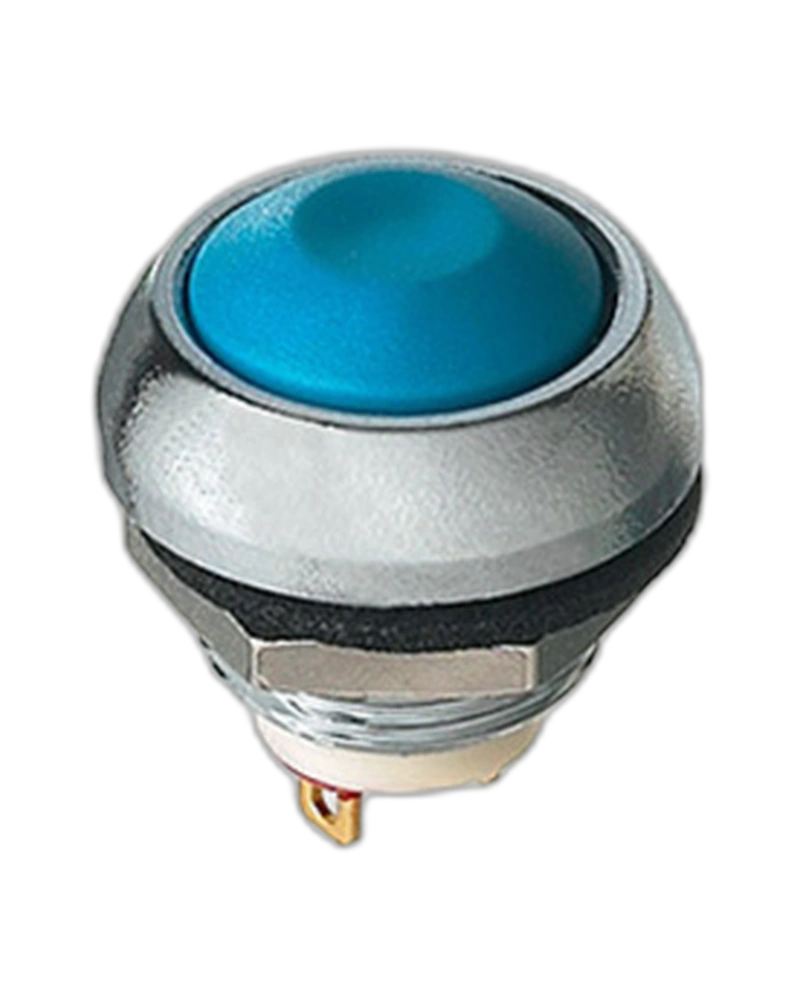

The APEM Panel Switches ISR3PAD200 is a robust, sealed switch designed for industrial applications. With IP67 sealing, it withstands dust and water immersion, operates within -40°C to +85°C, and features tactile feedback for precise control. Ideal for demanding environments where reliability and durability are critical.
The APEM Panel Switches ISR3PAD200 is a high-reliability, compact switch engineered for industrial automation systems. This autoswitch delivers exceptional performance in harsh conditions with its IP67-rated sealing, ensuring protection against dust and water immersion. The switch operates across a wide temperature range (-40°C to +85°C), maintains low contact resistance (50 mΩ max), and provides tactile feedback for precise user interaction. Its robust construction, including shock resistance (100g) and vibration tolerance (10-500 Hz), ensures consistent operation in demanding environments. The ISR3PAD200 is designed for seamless integration into control panels where reliability and durability are paramount.
The ISR3PAD200 excels in extreme environmental conditions. Its IP67 sealing provides full protection against dust and water immersion, while the operating temperature range of -40°C to +85°C ensures reliable performance in both freezing and high-heat environments. The switch also meets stringent shock resistance (100 g per IEC 512-4, test 6c) and vibration tolerance (10-500 Hz at 10 g per IEC 512-4, test 6d), making it suitable for industrial settings with mechanical stress.
With a maximum contact resistance of 50 mΩ, the ISR3PAD200 ensures minimal electrical interference during operation. The switch supports a wide range of electrical loads, including up to 400 mA at 32 VAC and 100 mA at 48 VDC for resistive loads. Its dielectric strength of 1,000 Vrms and insulation resistance of 1 GΩ min. at 500 VDC guarantee safe and stable electrical performance even under demanding conditions.
Engineered for long-term mechanical resilience, the ISR3PAD200 features a total travel of 1.7 mm (±0.3 mm) and an operating force of 4 N (±3 N). The switch withstands 500,000 cycles of electrical life at full load, with a low-level or mechanical life of 1,000,000 cycles. Its threaded bushing models ensure secure mounting and compatibility with standard hardware.
The ISR3PAD200 is ideal for industrial control panels where environmental resilience and precise switching are critical. Its compact design (1.5 mm to 4 mm panel thickness) and tactile feedback make it suitable for applications requiring reliable, user-friendly operation in harsh conditions, such as manufacturing equipment, machinery control systems, and automation processes.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms Electrical life at full load: 500,000 cycles Electrical life at full load: 500,000 cycles Front panel sealing according to IEC 60529: IP67 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resi |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 1,5 mm (.059) min. - 4 mm (.157) max. |
| Total travel | 1.7 mm (.066) +/- 0.3 mm Typical |
| operating force | 4 N +/- 3 N Low level or mechanical life: 1,000,000 cycles Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 Soldering: 300 °C max. for 3 seconds Low level or mechanical life: 1,00 |
| Max. current/voltage rating with resistive load | 400 mA 32 VAC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
| Mounting | Straight PC |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
