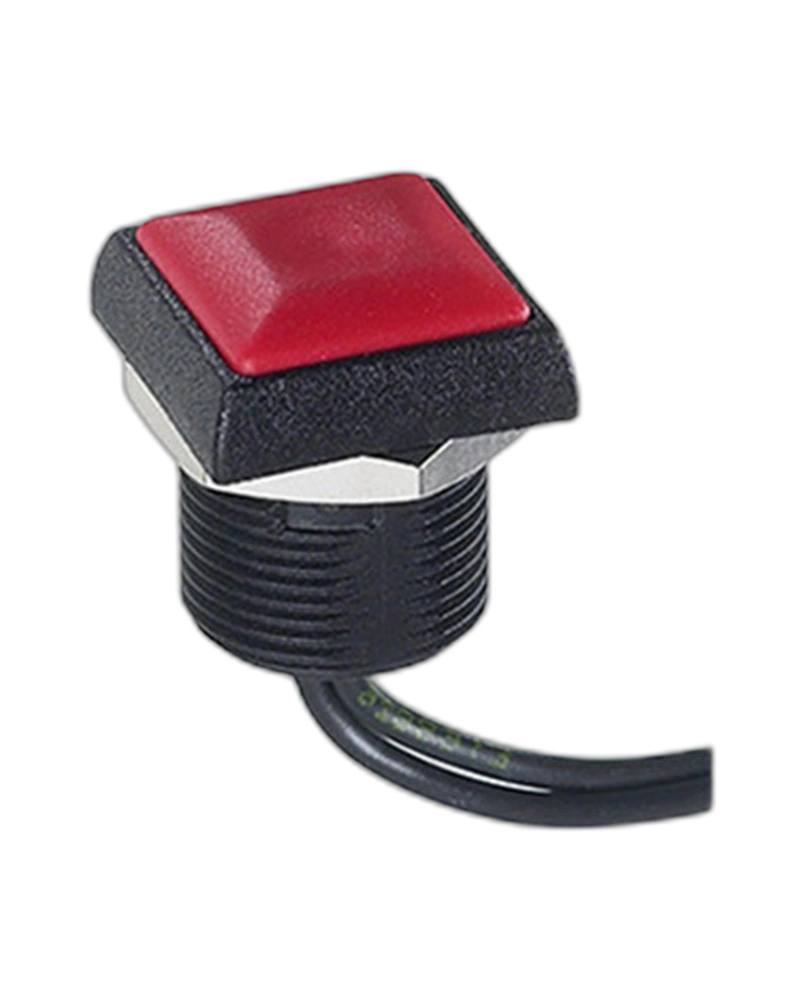

The APEM Panel Switches IRR8Z232 is a Switches and Pushbutton with documented product-specific characteristics including terminals: 4 A 48 VDC, 500,000 cycles; Insulation resistance: 1 GΩ min. at 500 VDC; sealing: IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f.
The Panel Switches IRR8Z232 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 8 mm (.314) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.8 Nm max. applied to nut Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Screw version up to 4 A Tactile feedback Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marki |
| Electrical Functions | Combined (NC/NO). 4 Terminals |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cyclesCode 7: 5 A 28 VDC, 70,000 cycles- Silver contacts (code 2) - screw |
The APEMPanel Switches IRR8Z232 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 8 mm (.314) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.8 Nm max. applied to nut Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Screw version up to 4 A Tactile feedback Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marki |
| Electrical Functions | Combined (NC/NO). 4 Terminals |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cyclesCode 7: 5 A 28 VDC, 70,000 cycles- Silver contacts (code 2) - screw |
