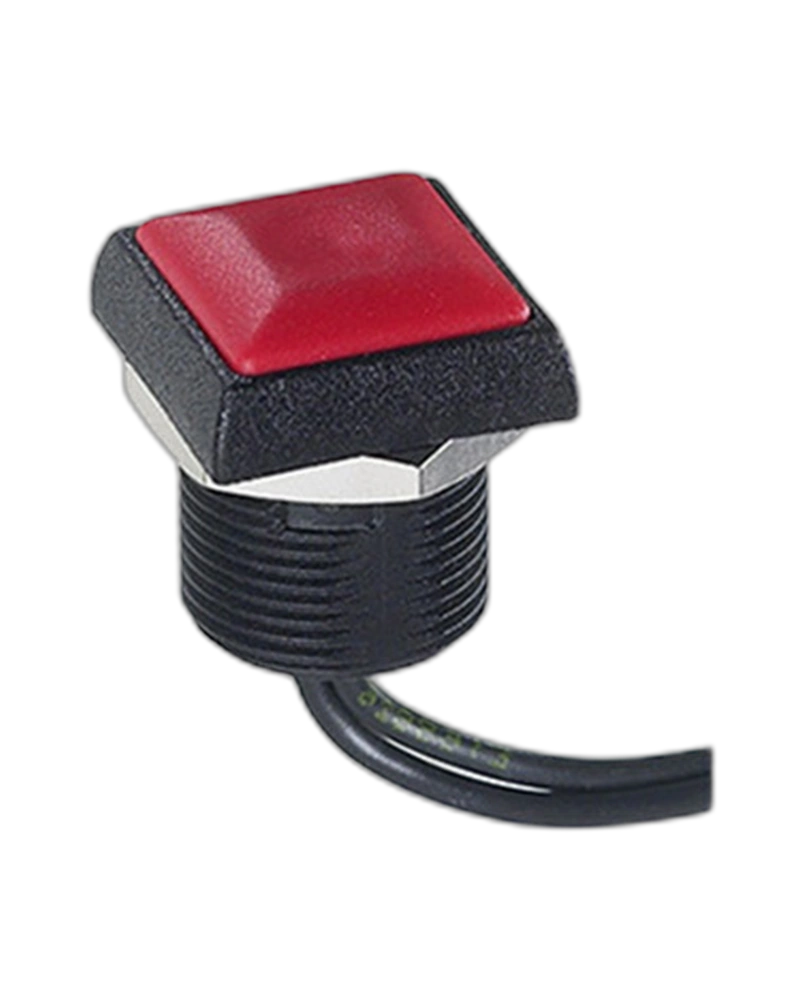

The APEM Panel Switches IRR8Z222 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP67 according to IEC 60529 Salt spray: IEC 512-6, test 11f; Torque: 0.8 Nm max. applied to nut Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Screw version up to 4 A Tactile feedback Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marki; operating force: 4 N +/- 2 N Mechanical life: 1,000,000 cycles.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| Initial contact resistance | 100 mΩ max. |
| force | 4 N |
| Feature | Specification |
|---|---|
| sealing | IP67 according to IEC 60529 Salt spray: IEC 512-6, test 11f |
| Torque | 0.8 Nm max. applied to nut Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Screw version up to 4 A Tactile feedback Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marki |
| operating force | 4 N +/- 2 N Mechanical life: 1,000,000 cycles |
| Operating temperature | -20 °C to +85 °C (-40 °F to 185 °F) Salt spray: IEC 512-6, test 11f |
| Electrical Functions | Combined (NC/NO). 4 Terminals |
| Max. current/voltage rating with resistive load | 5 A 250 VAC, 50,000 cycles (function 7)5 A 250 VAC, 25,000 cycles (function 8) |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
