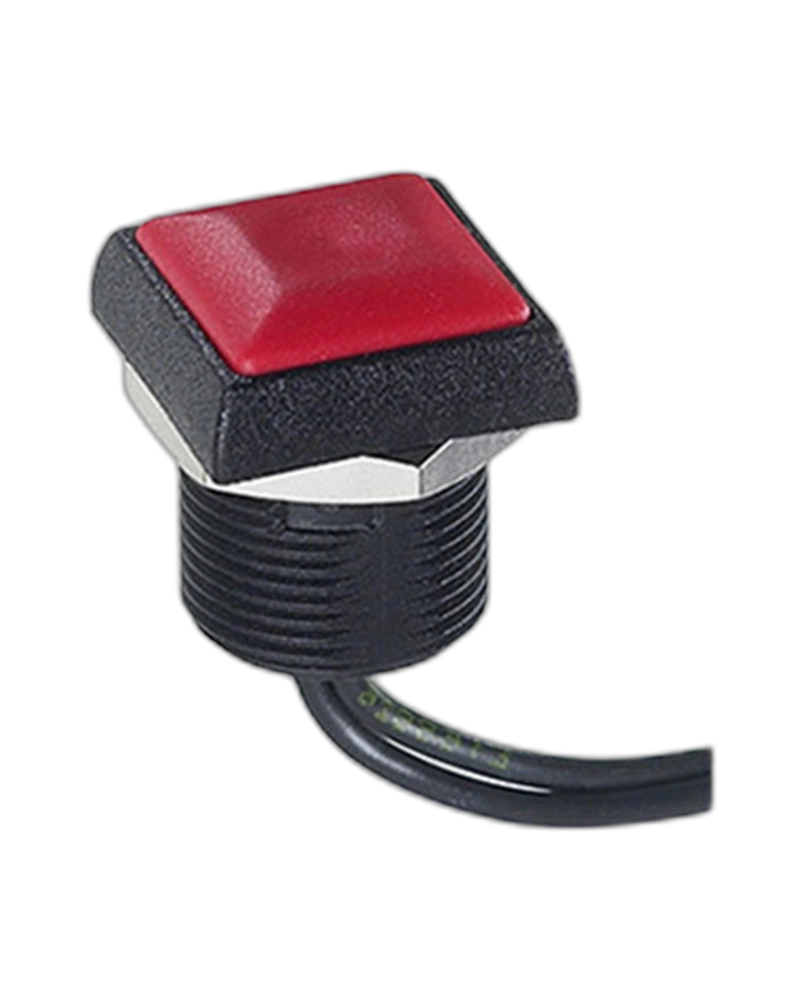

The APEM Panel Switches IRR7Z262 is a robust autoswitch designed for industrial applications. Featuring 4 terminals rated for 4 A 48 VDC with 500,000 cycles, IP67 sealing, and shock/vibration resistance, this switch ensures reliable operation in harsh environments. Ideal for demanding electrical systems requiring high durability and environmental protection.
The APEM Panel Switches IRR7Z262 is a high-reliability autoswitch engineered for industrial environments where durability and environmental resilience are critical. With 4 terminals rated for 4 A 48 VDC and 500,000 operational cycles, this switch delivers consistent performance under demanding conditions. Its IP67 rating ensures protection against dust, water, and corrosive environments, while shock resistance (100 g) and vibration tolerance (10-500 Hz at 10 g) meet stringent industrial standards. The switch also supports tactile feedback, optional illumination, and flat round actuators for precise user interaction.
The IRR7Z262 features 3 terminals with combined NC/NO electrical functions. It supports a maximum current of 4 A at 48 VDC with 500,000 cycles for resistive loads. Initial contact resistance is 100 mΩ max, and dielectric strength reaches 1,500 Vrms. Gold-plated contacts (Code 4) handle 200 mA at 48 VDC for 500,000 cycles, while silver contacts (Code 2) support up to 4 A.
Engineered for extreme conditions, the IRR7Z262 meets IP67 standards for dust and water resistance. It withstands shock testing (100 g) and vibration (10-500 Hz at 10 g) per IEC 512-4, and salt spray resistance (IEC 512-6, test 11f). The operating temperature range spans -40 °C to +85 °C, ensuring reliable performance in both cold and hot industrial settings.
With a total travel of 1.6 mm (±0.3 mm), the switch requires an operating force of 4 N (±2 N). The flat round actuator provides tactile feedback and supports optional marking. Torque for nut application is 0.8 Nm max, and soldering can be performed at 320 °C for up to 3 seconds.
This autoswitch is ideal for industrial control panels where high durability and environmental protection are essential. Its screw version supports up to 4 A, and the IP67 sealing makes it suitable for outdoor installations, marine environments, and chemical processing systems. The tactile feedback ensures precise user interaction without compromising reliability.
| Feature | Specification |
|---|---|
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 8 mm (.314) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.8 Nm max. applied to nut Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Screw version up to 4 A Tactile feedback Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marki |
| Electrical Functions | Combined (NC/NO). 3 Terminals |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cyclesCode 7: 5 A 28 VDC, 70,000 cycles- Silver contacts (code 2) - screw |
The APEMPanel Switches IRR7Z262 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP67 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | 8 mm (.314) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| operating force | 4 N +/- 2 N Low level or mechanical life: 1,000,000 cycles |
| Torque | 0.8 Nm max. applied to nut Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Screw version up to 4 A Tactile feedback Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marki |
| Electrical Functions | Combined (NC/NO). 3 Terminals |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cyclesCode 7: 5 A 28 VDC, 70,000 cycles- Silver contacts (code 2) - screw |
