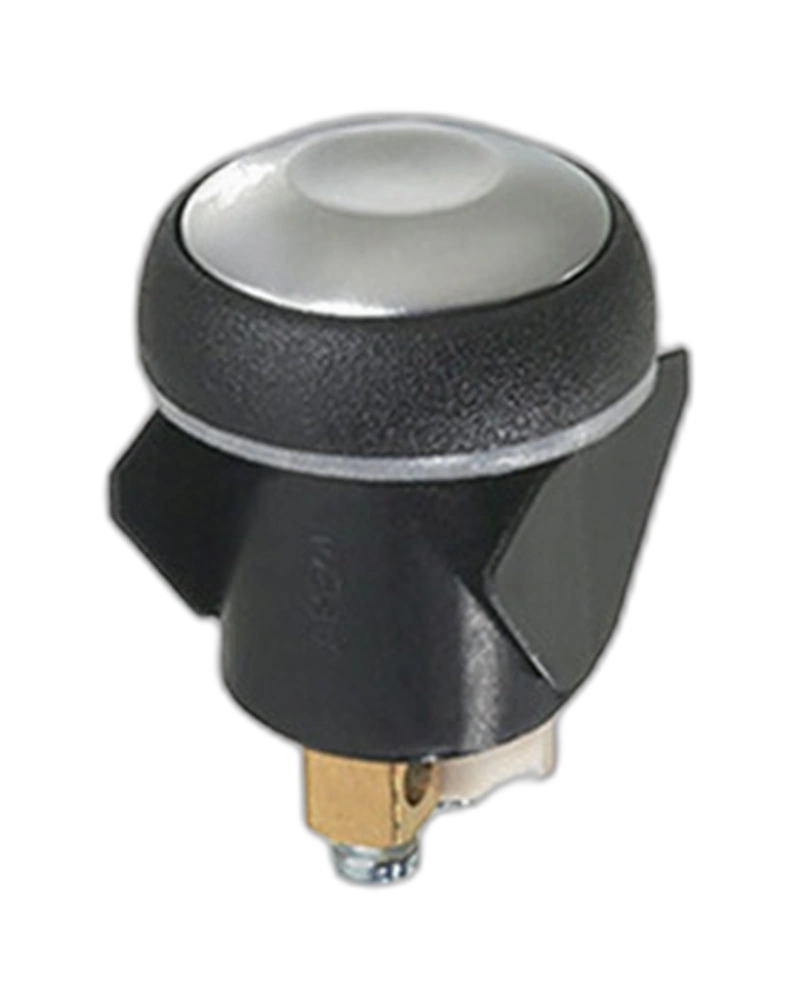

The APEM Panel Switches IQR3Z422 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f; Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f; operating force: 5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching action.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0,3 mm Typical |
| Initial contact resistance | 100 mΩ max. |
| force | 5 N |
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching action |
| Electrical Functions | Normally Open (NO) |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Panel thickness | with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0,3 mm Typical |
