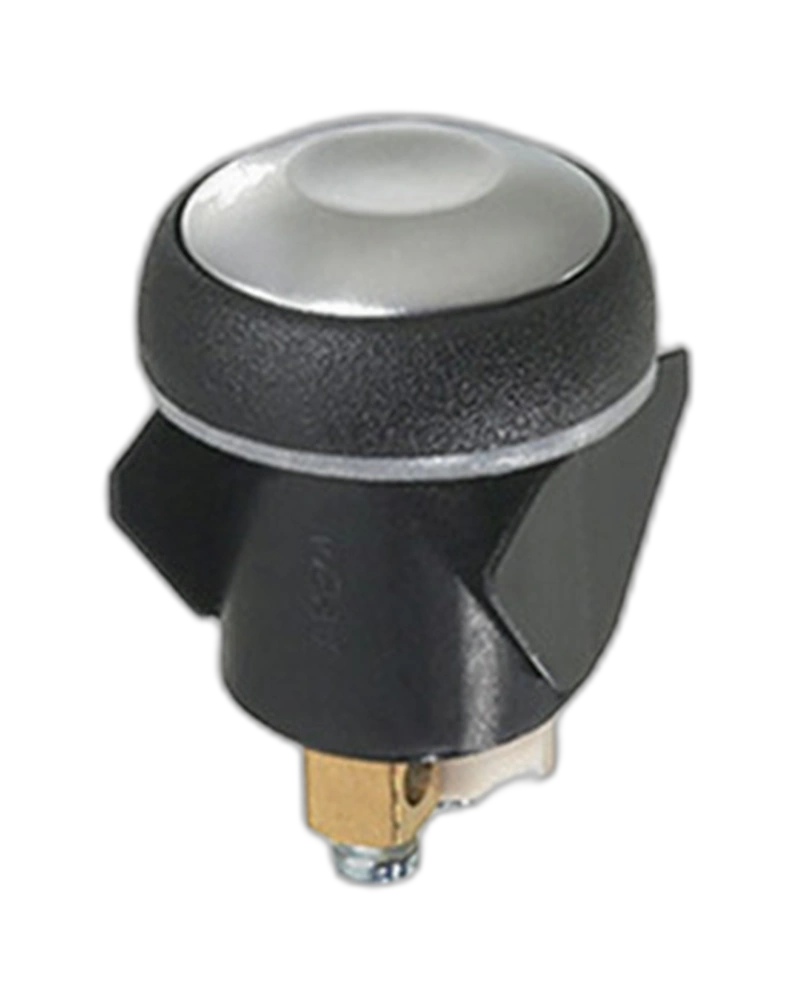

The APEM Panel Switches IQR3S422L0G is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1 GΩ min. at 500 VDC; sealing: IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f; Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d.
The Panel Switches IQR3S422L0G is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0,3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching action |
| Electrical Functions | Normally Open (NO) |
| Mounting | Solder Lug |
The APEMPanel Switches IQR3S422L0G is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Panel thickness | with flat seal: 2.20 mm (.088) max.without flat seal: 3 mm (.118) max. |
| Total travel | 2.5 mm (.098) +/- 0,3 mm Typical |
| operating force | 5 N +/- 2 N Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 200,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. Latching action |
| Electrical Functions | Normally Open (NO) |
| Mounting | Solder Lug |
