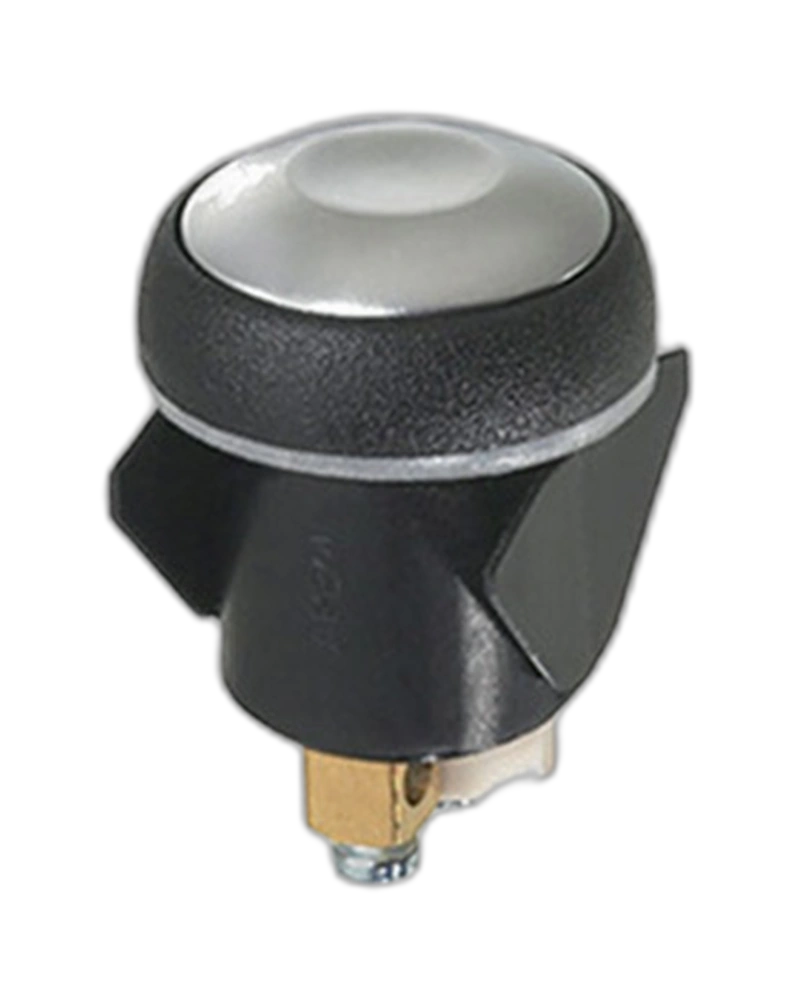

The APEM Panel Switches IQR3F432L0G is a robust autoswitch designed for industrial applications. Featuring 4 A 48 VDC terminals with 500,000 cycles, IP54 sealing, and a temperature range of -40 °C to +85 °C, this switch ensures reliable operation in demanding environments. Ideal for control panels requiring high durability and environmental resilience.
The APEM Panel Switches IQR3F432L0G is a high-reliability autoswitch engineered for industrial control systems. With a 4 A 48 VDC rating and 500,000 operational cycles, this switch delivers consistent performance in harsh conditions. Its IP54 protection ensures dust and water resistance, while the operating temperature range of -40 °C to +85 °C makes it suitable for extreme environments. The switch features a flat round actuator for optional marking and supports latching action models sealed to IP67, providing enhanced durability for critical applications.
The IQR3F432L0G supports 4 A 48 VDC with 500,000 cycles for resistive loads. Gold-plated contacts (Code 4) handle 200 mA at 48 VDC, while silver contacts (Code 2) provide 5 A at 28 VDC. Initial contact resistance is 100 mΩ max, and dielectric strength reaches 1,500 Vrms.
Engineered for industrial durability, the switch meets IP54 standards for dust and water resistance. It withstands shock resistance of 100 g and vibration resistance up to 10 g at 10-500 Hz. Salt spray testing (IEC 512-6) ensures long-term reliability in corrosive environments.
With a total travel of 1.6 mm (±0.3 mm), the switch operates within a force range of 4 N (±2 N). The latching action models are sealed to IP67, offering enhanced protection for continuous use in demanding conditions. Operating temperature spans -40 °C to +85 °C, accommodating extreme thermal variations.
The switch features a flat round actuator for optional marking and is designed for soldering at 320 °C max for 3 seconds. Its 1,000,000 cycle life ensures longevity, while insulation resistance of 1 GΩ min at 500 VDC guarantees electrical safety.
| Feature | Specification |
|---|---|
| Panel thickness | with flat seal : 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Latching action models Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Flat round actuator for opti |
| operating force | 4N +/- 2N Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
The APEMPanel Switches IQR3F432L0G is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | with flat seal : 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. |
| Total travel | 1.6 mm (.062) +/- 0.3 mm Typical |
| terminals | 4 A 48 VDC, 500,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| sealing | IP54 according to IEC 60529 Shock resistance: 100 g according to IEC 512-4, test 6c Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d Salt spray: IEC 512-6, test 11f |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) Latching action models Sealed to IP67 Illuminated or non-illuminated Flat round actuator for optional marking Sealed to IP67 Illuminated or non-illuminated Flat round actuator for opti |
| operating force | 4N +/- 2N Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Low level or mechanical life: 1,000,000 cycles Soldering: 320 °C max. for 3 sec. Soldering: 320 °C max. for 3 sec. |
| Max. current/voltage rating with resistive load | - Gold plated contacts: Code 4: 200 mA 48 VDC, 500,000 cycles Code 7: 5 A 28 VDC, 70,000 cycles - Silver contacts:Code 2: screw |
